Grapples

When LOWE® entered the grapple attachment market, we knew that we needed to offer something special. We did it.

LOWE® grapples bring new elements of productivity and durability to the grapple attachment marketplace. Yet the cost of a LOWE® grapple is several hundred to over a thousand dollars less than anything comparable. Just look at all the features. There is no better value:

  • Grab a load sideways, or use the clamp’s special design to grab by the end
  • Premium hydraulic cylinders, hoses, and fittings
  • More useful load than anything comparable
  • Extensive protection of cylinders and hoses
  • Fully enclosed back plate
  • Fully enclosed clamps
  • Side mounted hydraulic auxiliary connections
  • Ten tine grapple bucket
  • Four point reinforcement
  • Serial number identification and detailed operator’s manual
  • Industry leading safety labeling

Our grapples can also be used in ways other grapples cannot. Use it as a log puller by picking a log by the end with the front of the clamp and take it where you wish. This feature allows you to pick a load and carry it through a narrow opening that would block a typical grapple.

Pick items that are close to a building or fence line where other grapples fail. With an extremely large clamp opening, you will find you can use it on larger items than you may have expected. All this added performance and secure clamping makes you even more productive.

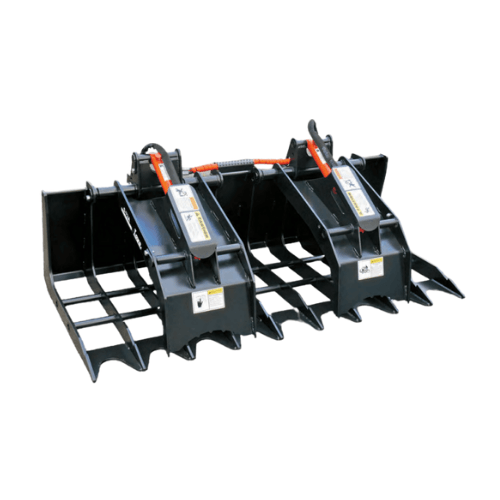

Model G-72A Grapple

Model G-72A

Model G-72A

Our most popular model. The LOWE® G-72A is ideal for removing debris, woodlot cleanup, general agricultural applications, manure cleanup, moving bales, and clearing areas. The open bucket construction allows smaller items and dirt to sift through leaving a cleaner load.



Specifications:

Weight – 684 lbs. (310 Kg)
Width – 72 inches (1,829 mm)
Depth – 41 inches (1,041 mm)
Max height (closed) – 30 inches (762 mm)
Max height (open) – 41.75 inches (1,060 mm)
Max opening gap – 40 inches (1,016 mm)
Download brochure


Model G-56A GRAPPLE

Model G-56A

Model G-56A

The LOWE® G-56A does the same kinds of jobs as the larger G-72A. It has all the features but is designed for smaller machinery. The G-56A saves considerable weight and cost by using only one hydraulic clamp. The compactness and maneuverability of the G-56A allow it to be operated where larger equipment cannot be used.

Specifications:

Weight – 483 lbs. (219 Kg)
Width – 56 inches (1,422 mm)
Depth – 41 inches (1,041 mm)
Max height (closed) – 30 inches (762 mm)
Max height (open) – 41.75 inches (1,060 mm)
Max opening gap – 40 inches (1,016 mm)
Download brochure

Model BG-600 Bucket Grapple

Model BG-600

Model BG-600

The LOWE® BG-600 is an extremely rugged industrial strength grapple. The fully enclosed bucket with reversible wear blade is extremely useful in scraping and other cleaning operations. It is excellent for use in scrap and recycling operations, removing concrete and asphalt, and other demanding applications. The closed bucket construction keeps dirt and smaller debris from spilling out, leaving a cleaner work area.

Like other LOWE® grapples, the BG-600 has the ability to pick a load from the end as well as from the side. The design of the hydraulic system also allows you to securely clamp items that may have uneven surfaces while keeping consistent pressure on the entire load.

Specifications:

Weight – 891 lbs. (404 Kg)
Width – 72 inches (1,829 mm)
Depth – 38 inches (965 mm)
Max height (closed) – 30 inches (762 mm)
Max height (open) – 46 inches (1,168 mm)
Max opening gap – 42 inches (1,067 mm)
