LFHB-60 Fronthoe
The backbone of our latest innovation, engineered to transform your skid steer into a force to be reckoned with. built with the toughest foundation available—thick, grade 50 steel, a rigid box beam design, and a sturdy skid steer universal mount. No more limitations. No more compromises. The OptiBoom MAX is built to handle the most demanding tasks, whether you’re tackling tough terrain or lifting heavy loads.
Heavy Duty Construction: Built from 5/16" side plates and 3/8" GR50 material, designed for extreme wear resistance and durability.
Industry-Leading Quick Attach Functionality: The only quick attach system for skid steer booms—allowing you to switch out buckets, lifts, and rakes effortlessly, saving time and boosting efficiency.
Innovative Pivot Points: Every pivot point on the OptiBoom MAX is equipped with hardened sleeves and hardened pins for long-lasting performance, ensuring maximum uptime.
Overbuilt Front Nose Design: Inspired by commercial excavators, the front nose offers superior strength and performance, while its quick-attach design simplifies your workflow.
Rapid Attachment Swap: One person can attach, detach, and swap attachments in under three minutes, only requiring the repositioning of a single pin.
| Specification | Details |
|---|---|
| Overall Length (without attachments) | 73" |
| Overall Height (without attachments) | 26" |
| Overall Width (without attachments) | 45" |
| Reach (without attachments) | 65.5" (machine mounting plate to attachment pivot pin) |
| Digging Depth (depends on attachment) | Up to 84" |
| Attachment Options | Trenching buckets, ditching buckets, skeleton buckets, rake, single clevis lift, spreader bar lift, 4-point lift attachment |

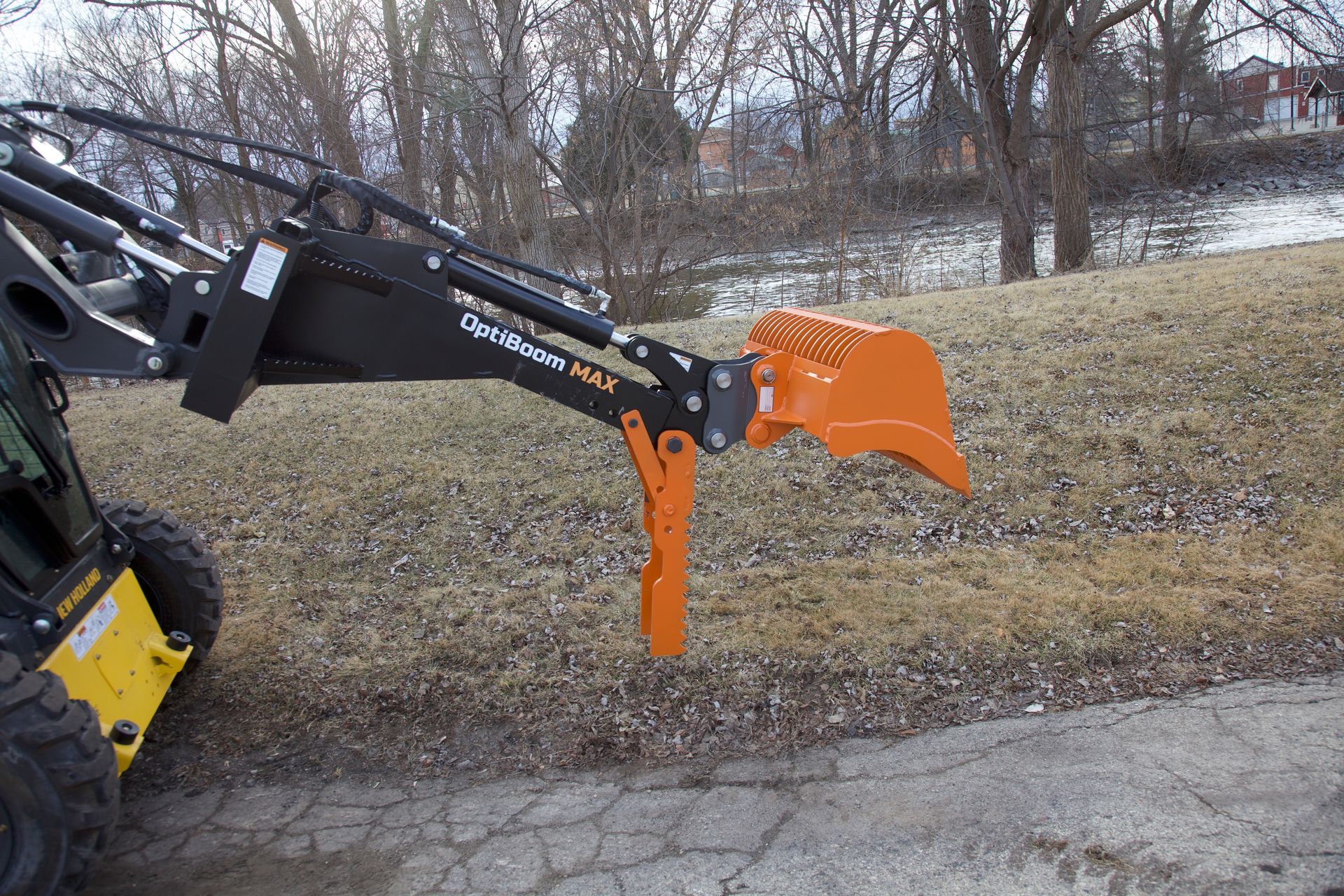

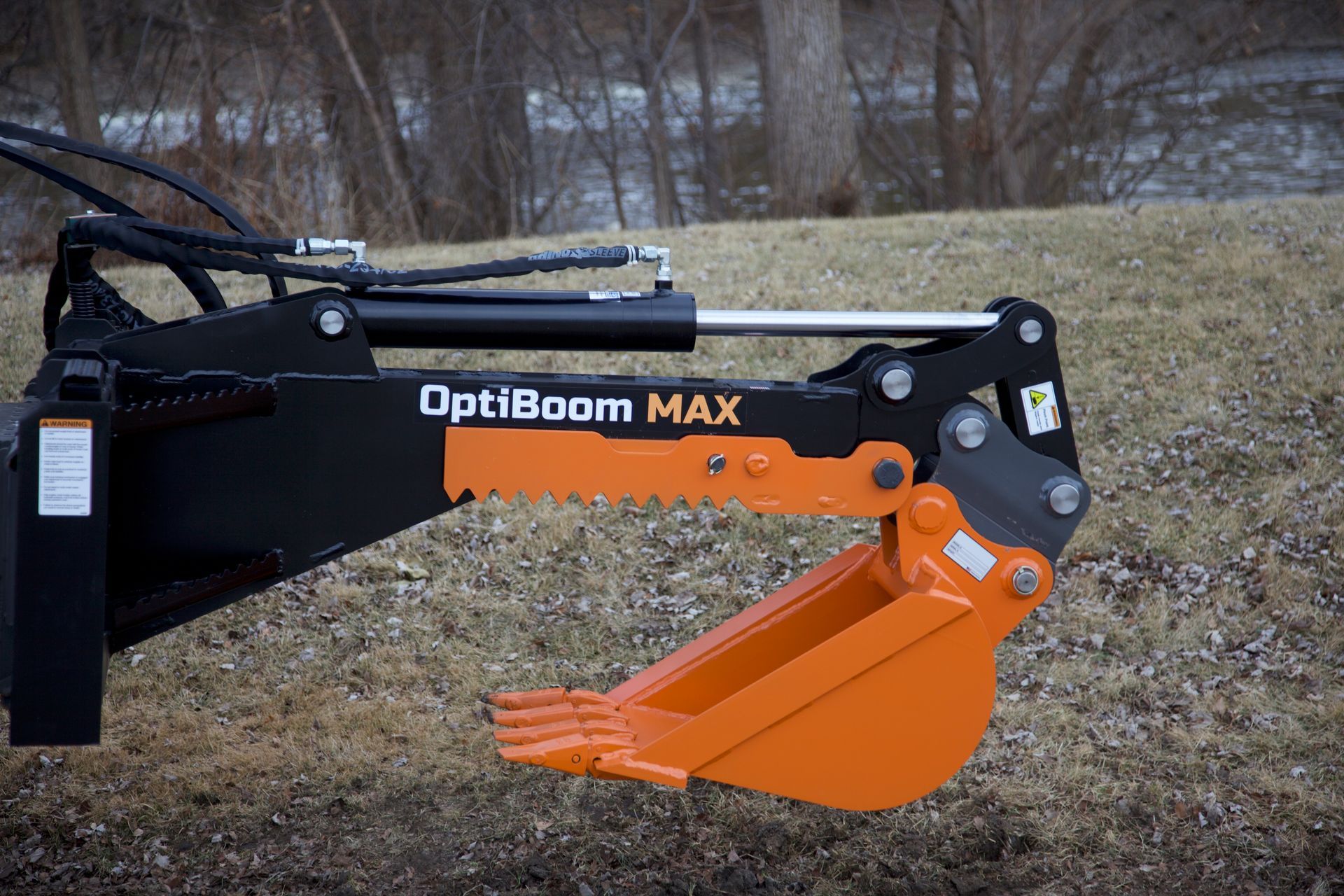

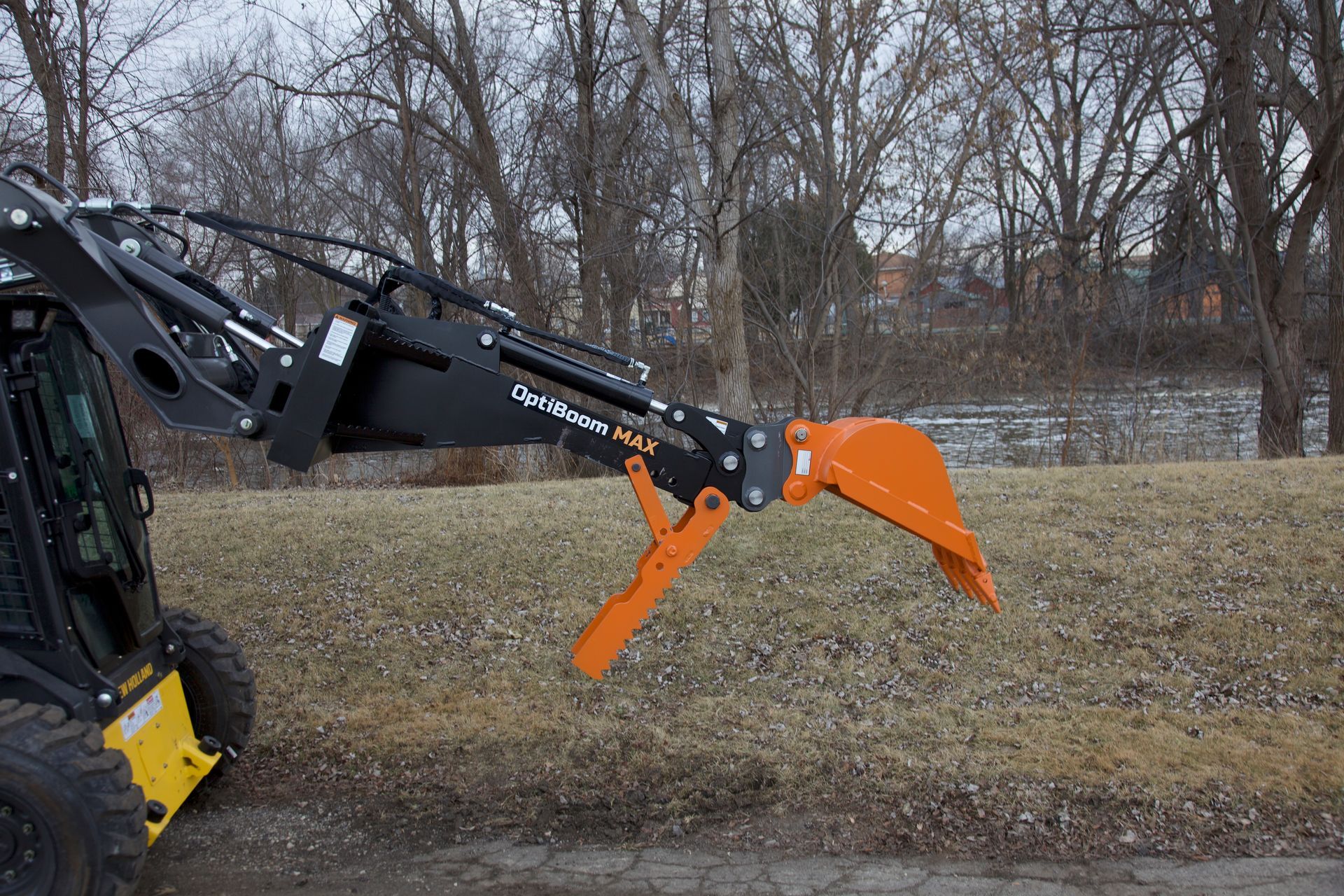

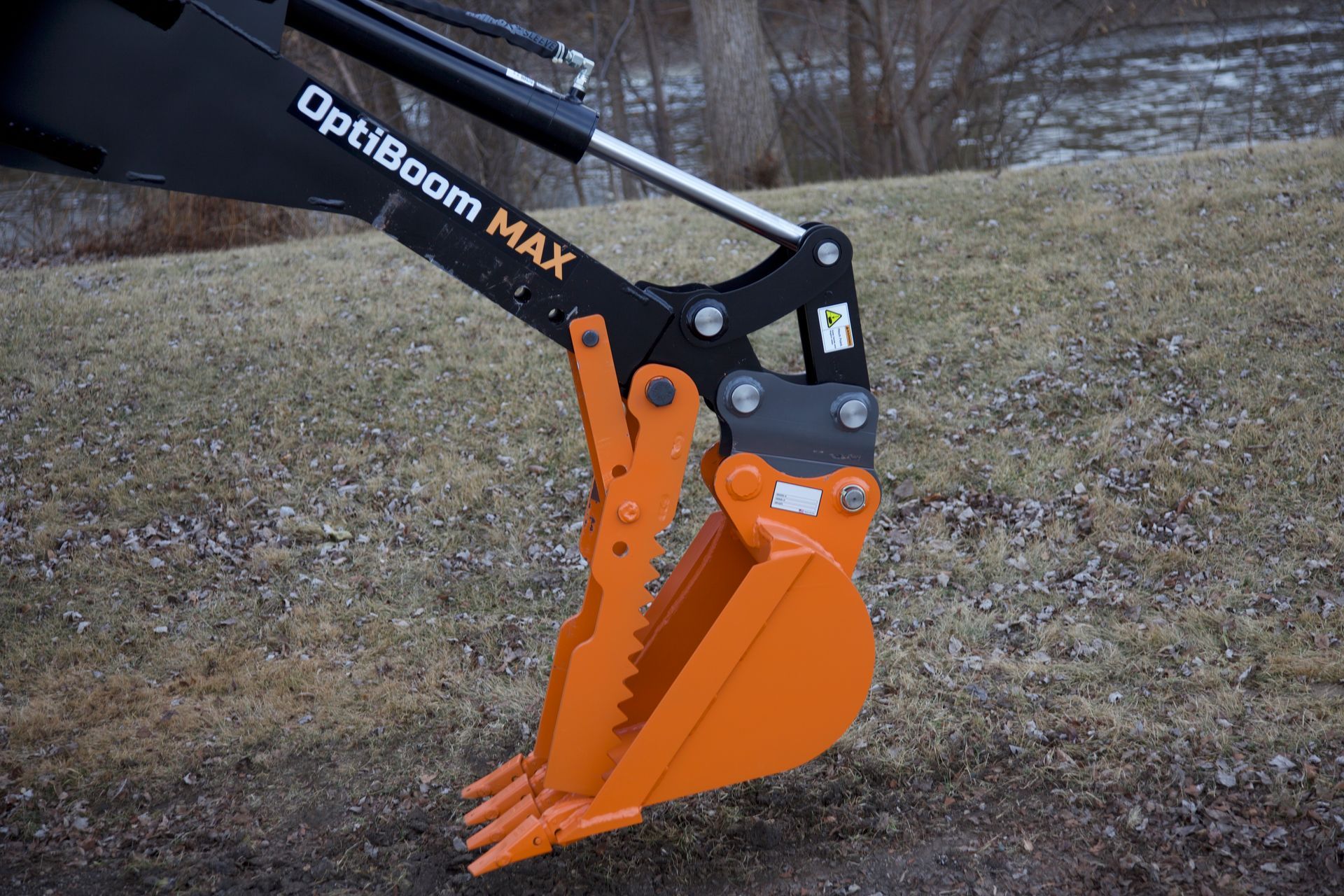

LFHTH Thumb
Whether you’re handling debris, rocks, or other materials, the thumb increases the versatility of the OptiBoom MAX. With more resting positions than any other thumb, it is designed to keep your workflow smooth and efficient. Built for maximum durability with ½” GR50serrated side plates and hardened steel bushings for long-lasting performance. Plus, it’s fully adjustable—with three pin locations for quick changes in thumb angle, you can adjust it to fit a variety of attachments, from trenching buckets to rakes and more.
Versatile Thumb: Four resting positions for the ultimate inflexibility.
Quick Adjustability: Three pin locations for fast thumb angle adjustments.
Durable Build: Heavy-duty ½” GR50 serrated side plates and hardened steel bushings for long-lasting strength.

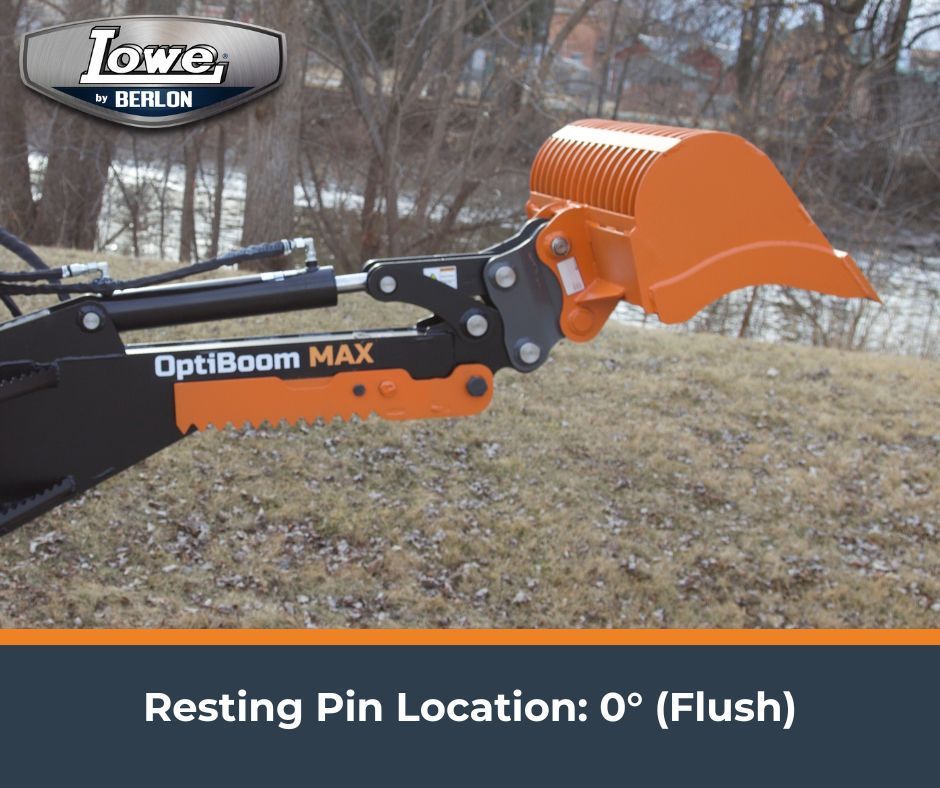

Flush Resting Position: Tucks up to the boom, leaving room for other attachments without interference.
Enhanced Gripping and Lifting: Can handle objects up to 24” in diameter when paired with a trenching bucket.
| Specification | Details |
|---|---|
| Overall Length | 31" |
| Overall Height | 5" |
| Overall Width | 9" |
| Total Weight | 57 lbs. (Approx.) |
| Height from Boom (at 90°) | 27” (From bottom of thumbplate to base of nose plate) |

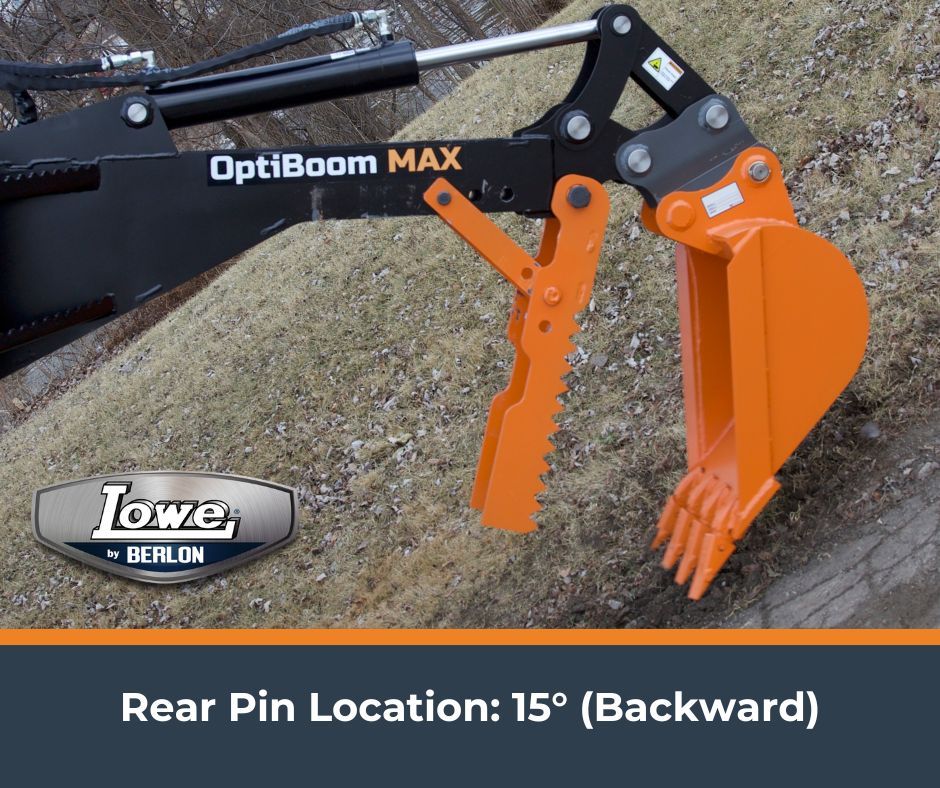

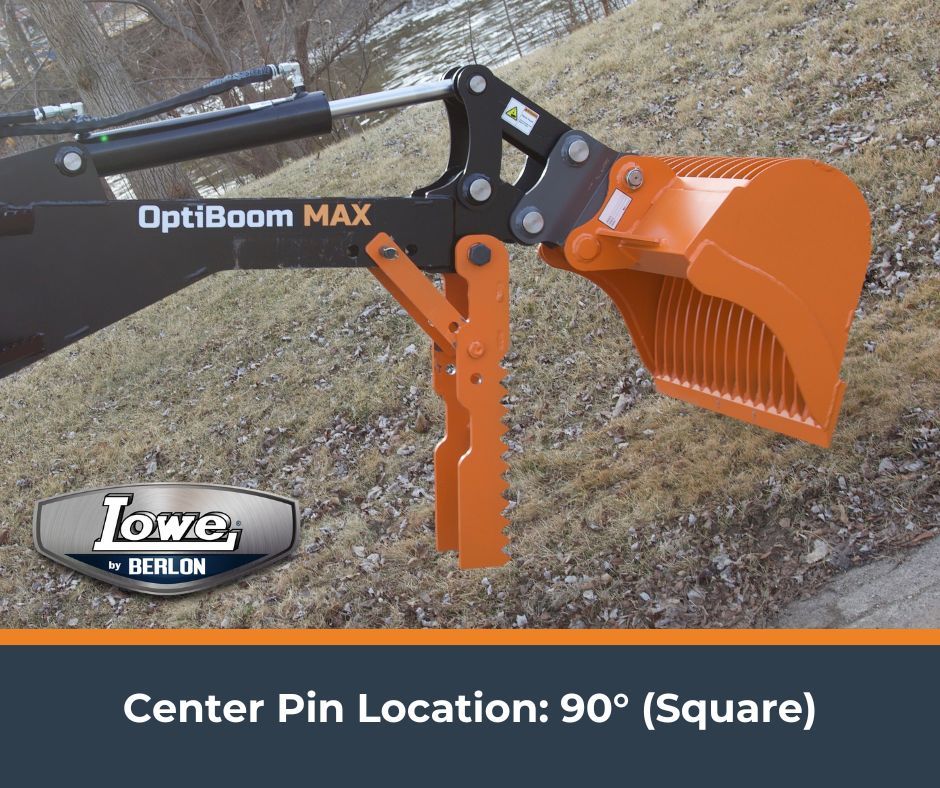

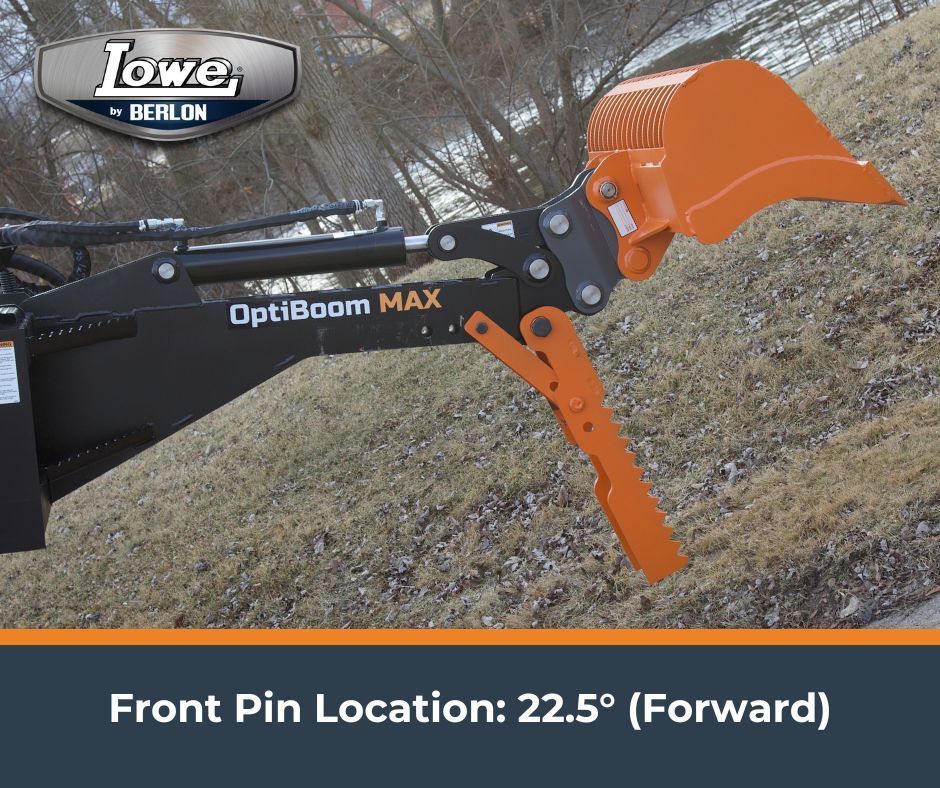

| Key Pin Positions | Front Pin Location: 22.5° (Forward), Center Pin Location: 90° (Square), Rear Pin Location: 15° (Backward), Resting Pin Location: 0° (Flush) |
| Attachment Options | Trenching bucket, rake, skeleton bucket, ditching bucket |

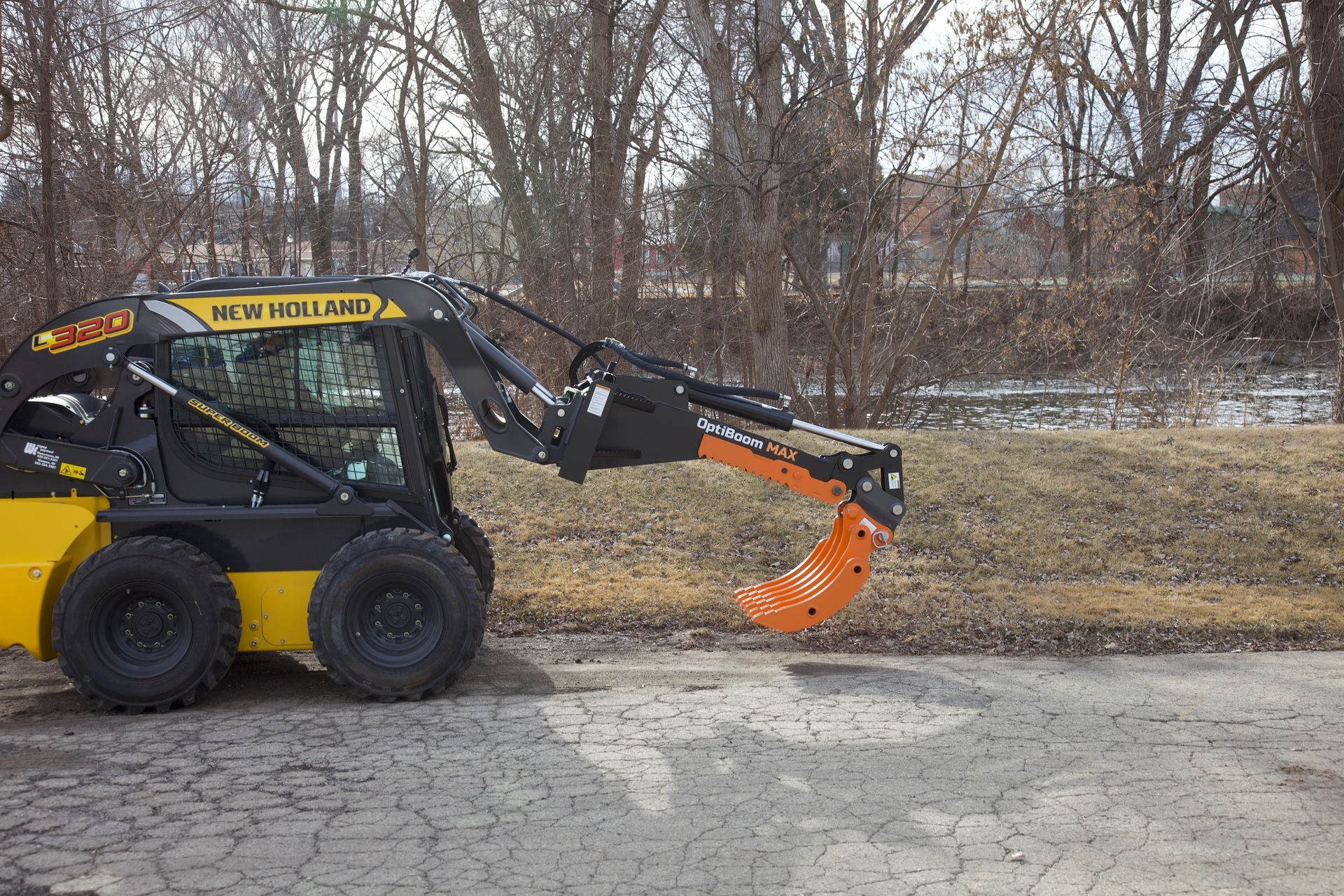

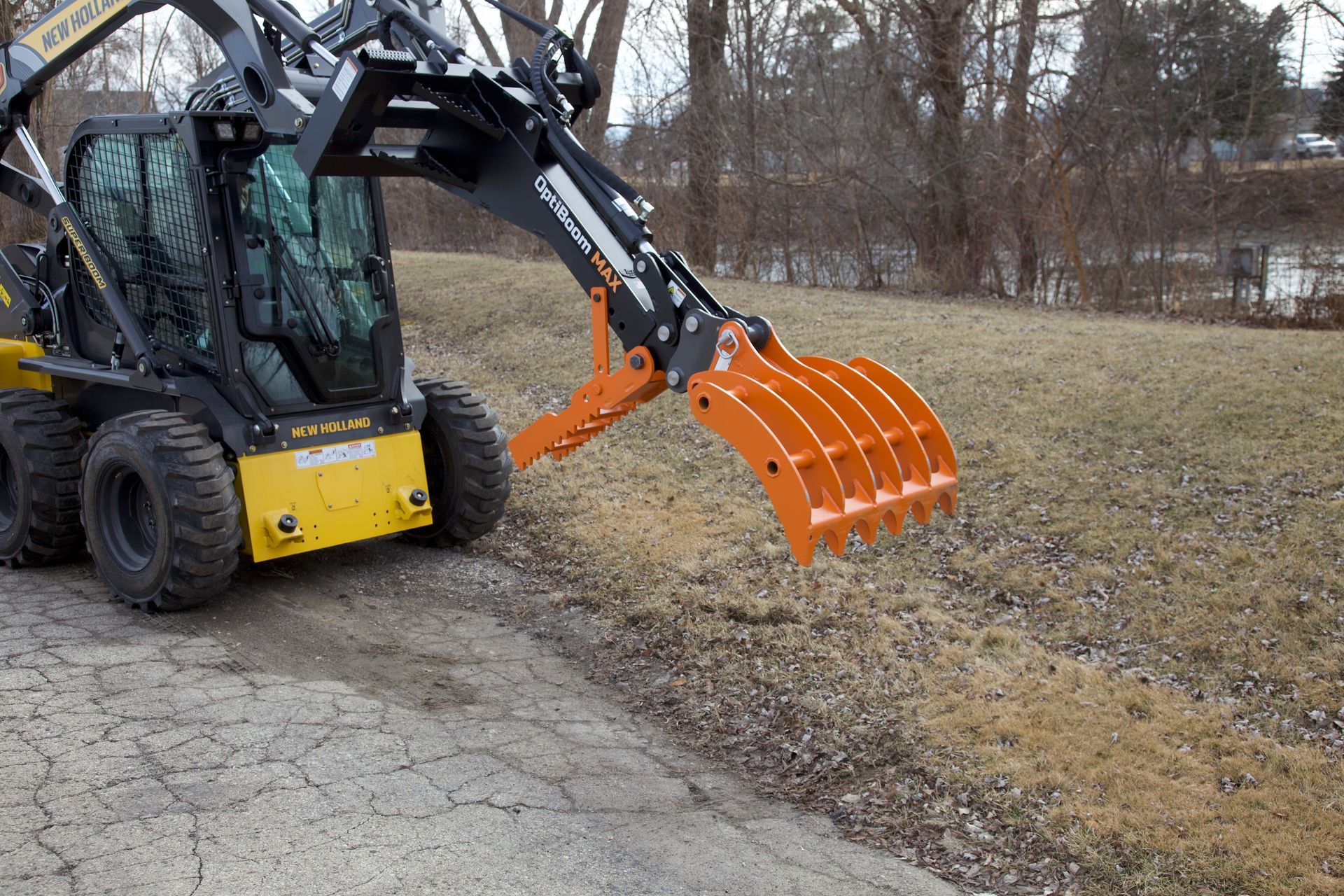

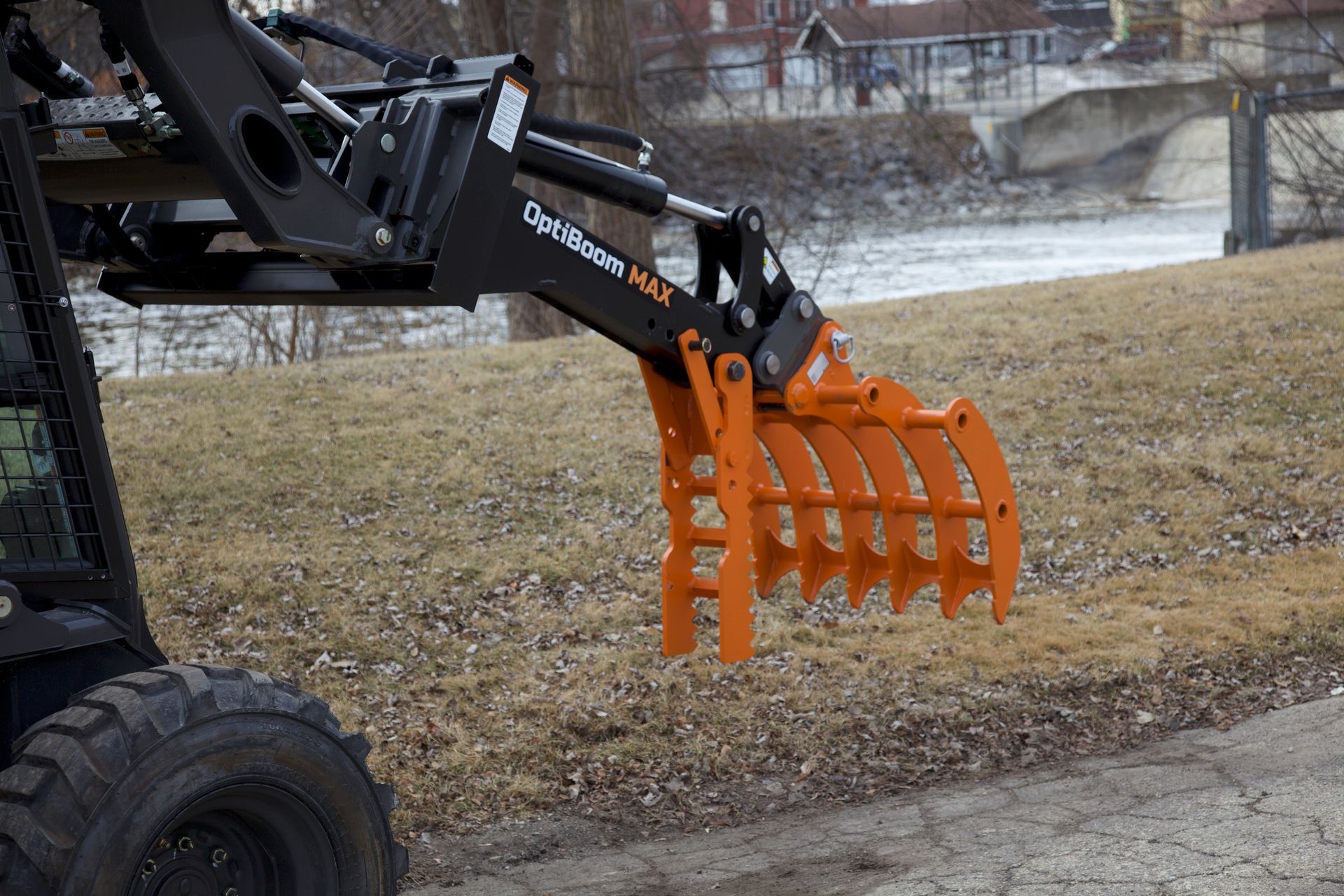

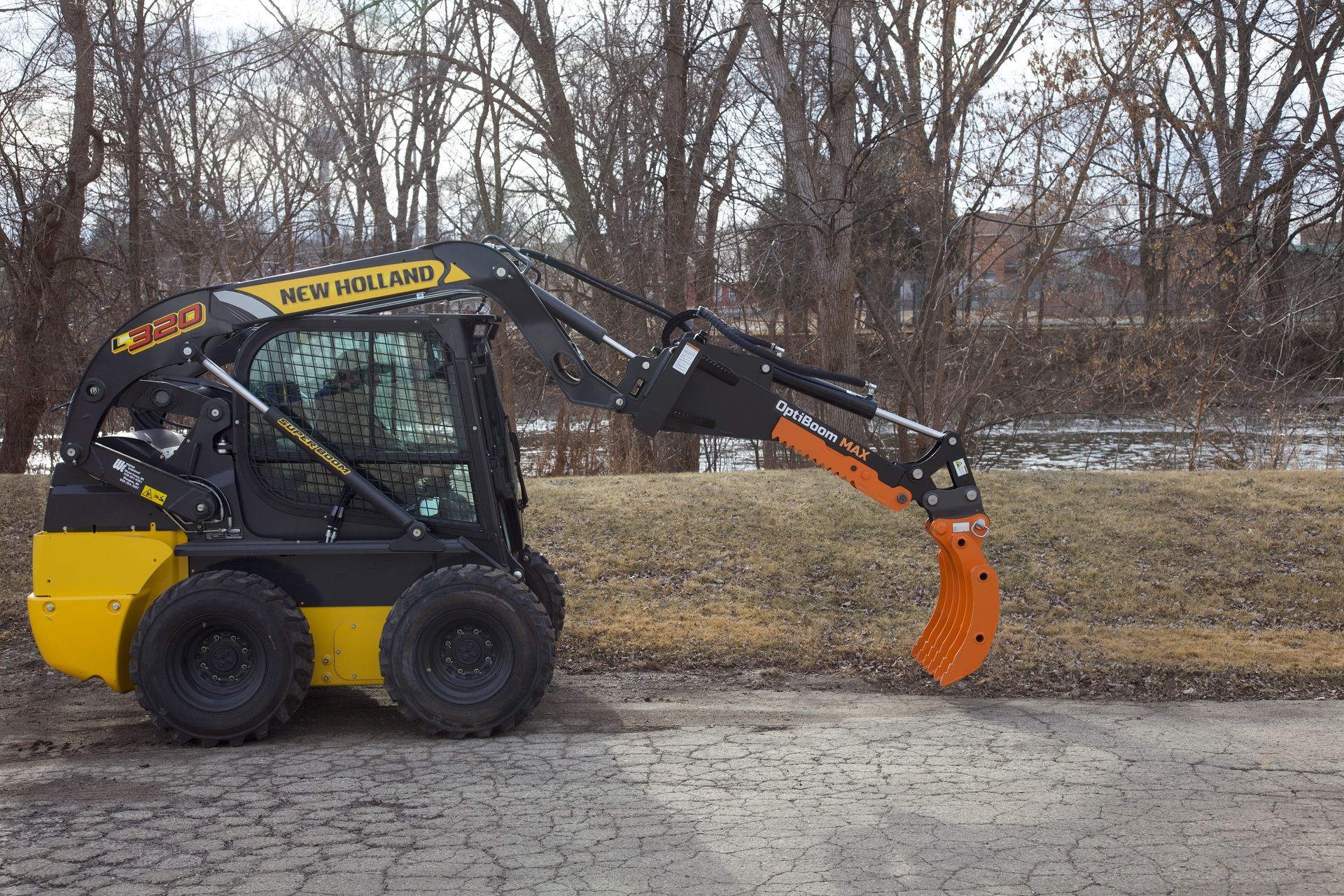

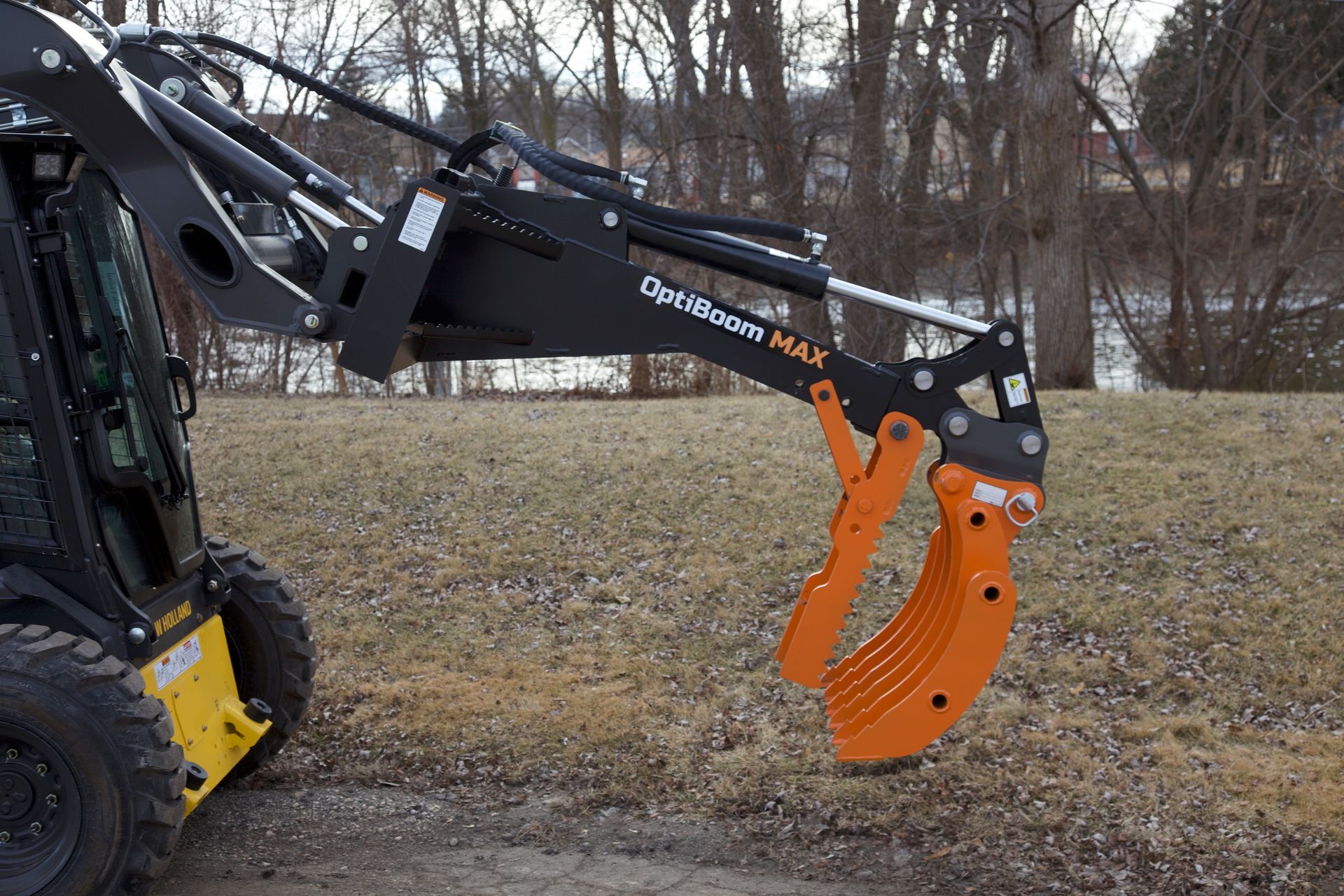

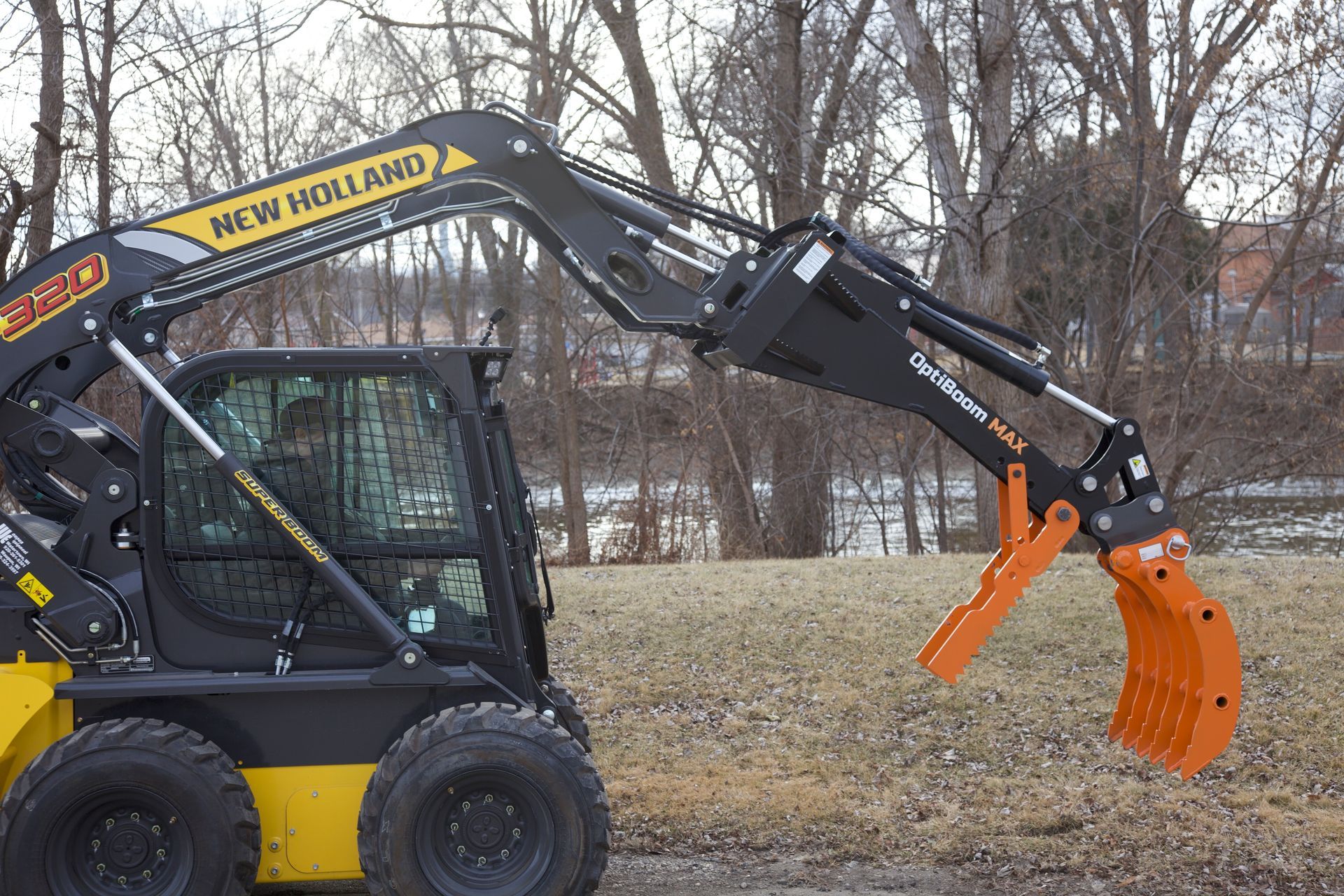

LFHRK-35 Rake
Engineered to help you tackle some of the toughest landscaping and construction jobs. Remove debris, rocks, roots, and other materials with unmatched precision. Thanks to the quick-attach mounting system, swapping the rake between tasks is incredibly easy—one person can detach and reattach it with a single pin, taking under three minutes. No more downtime or wasted effort, just maximum productivity. You’re going to want the Thumb.
Durable Construction: Built with ½” thick GR50 material on all tines for unmatched strength and wear resistance.
Hardened Steel Bushings: Ensures increased durability and longevity athigh-stress points.
Optimal Tine Spacing: 6 ¼” spacing between tines, ideal for handlingand separating various materials.
Heavy-Duty Cross Tubes: 1.9” diameter cross tubes to ensure maximum strength and rigidity.
Reinforced Hanger Gussets: Provides additional rigidity at the pins to eliminate flexing and distribute forces effectively.
| Specification | Details |
|---|---|
| Overall Length | 39" |
| Overall Height | 17" |
| Overall Width | 34" |
| Total Weight | 165 lbs. (Approx.) |
| Reach on Boom | 95” (7.9’) [241 cm] (From tip of teeth extended to machinemounting plate) |

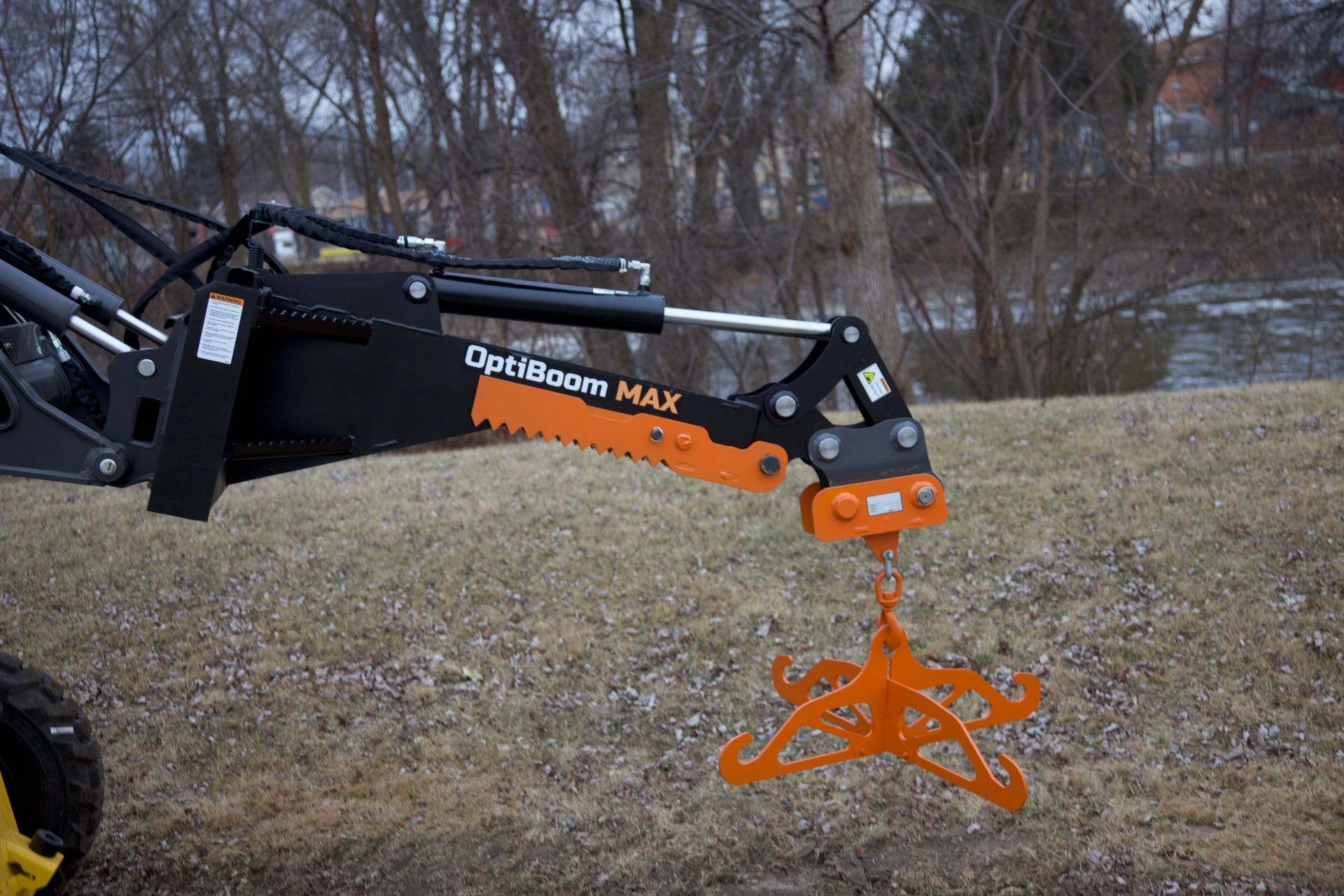

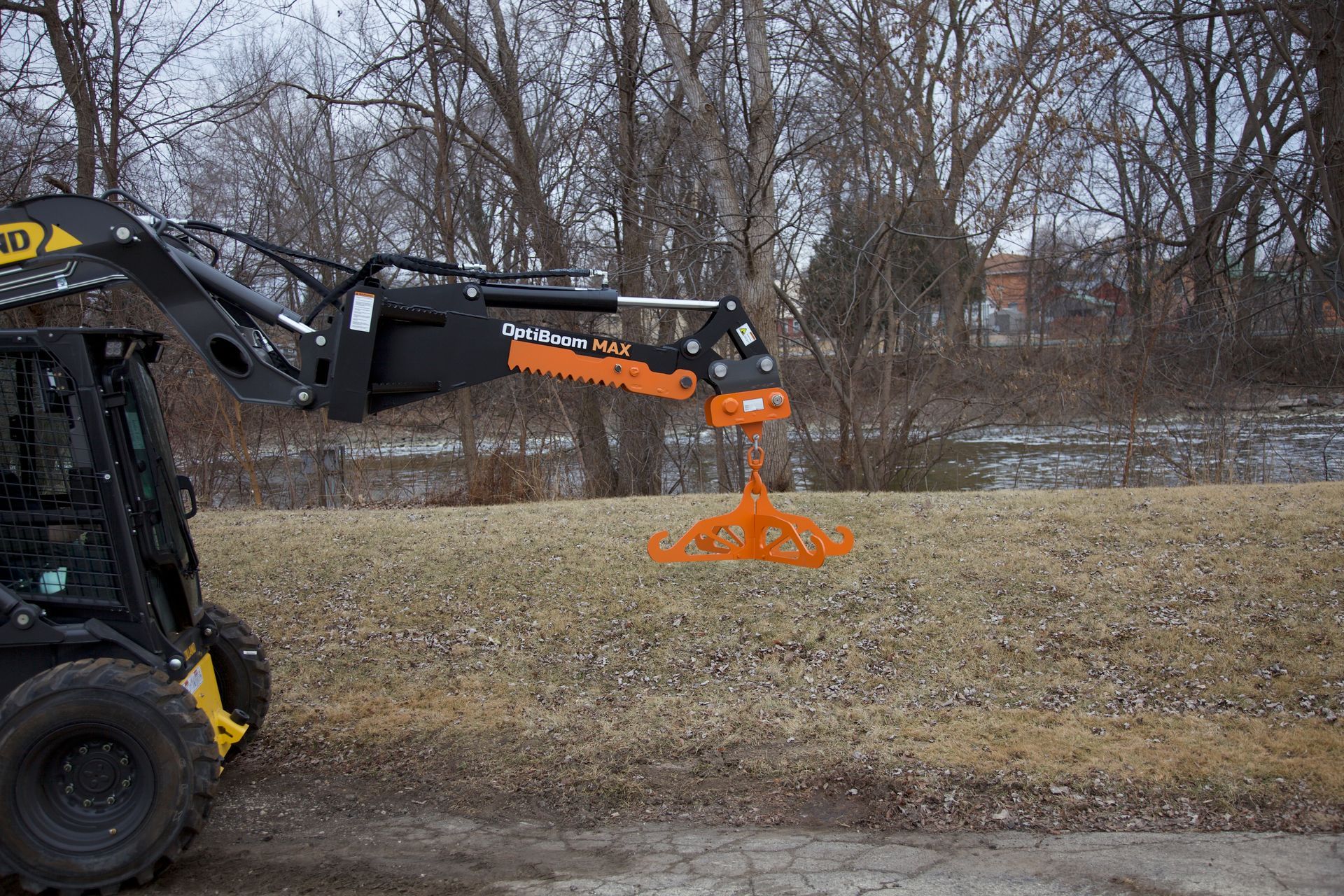

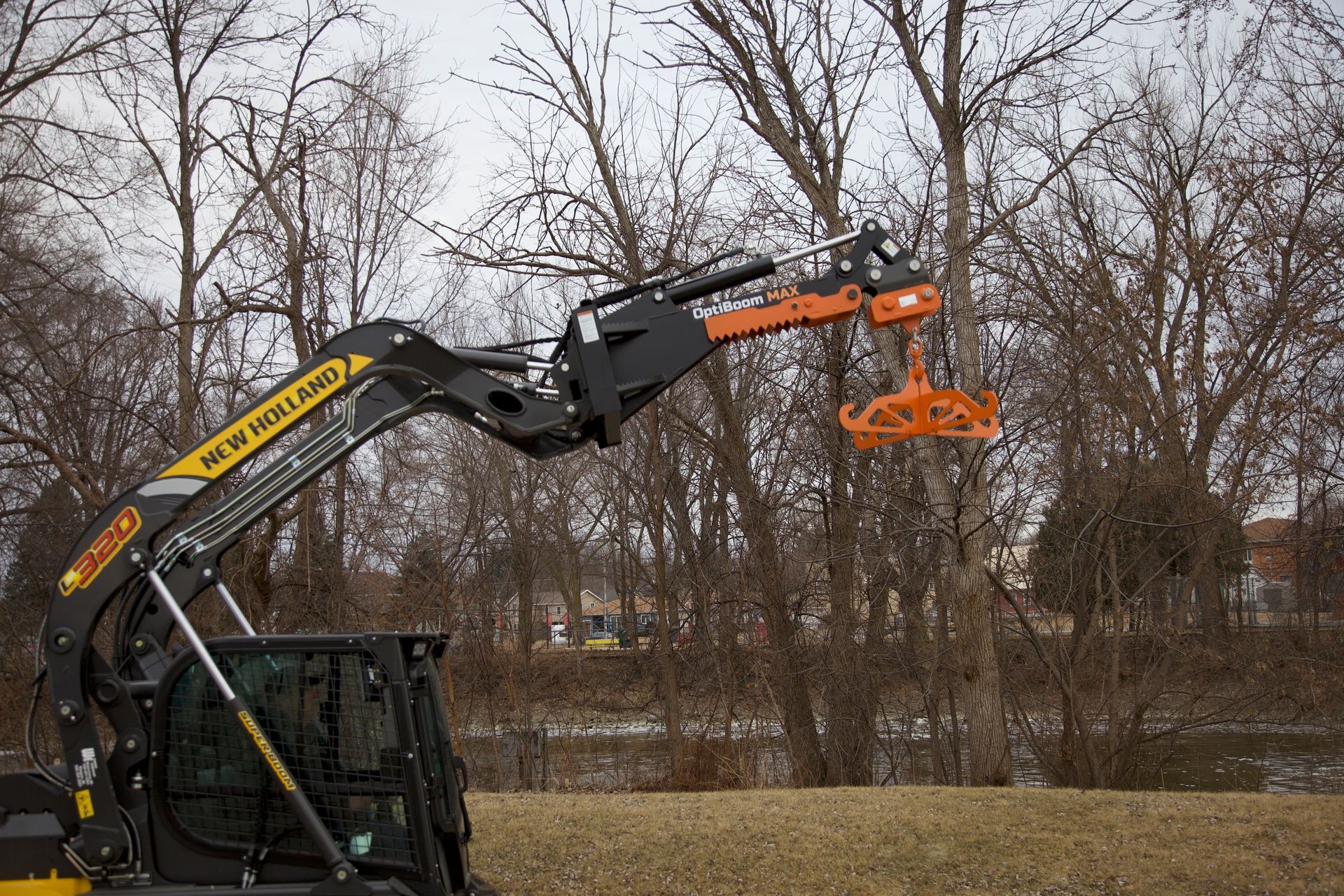

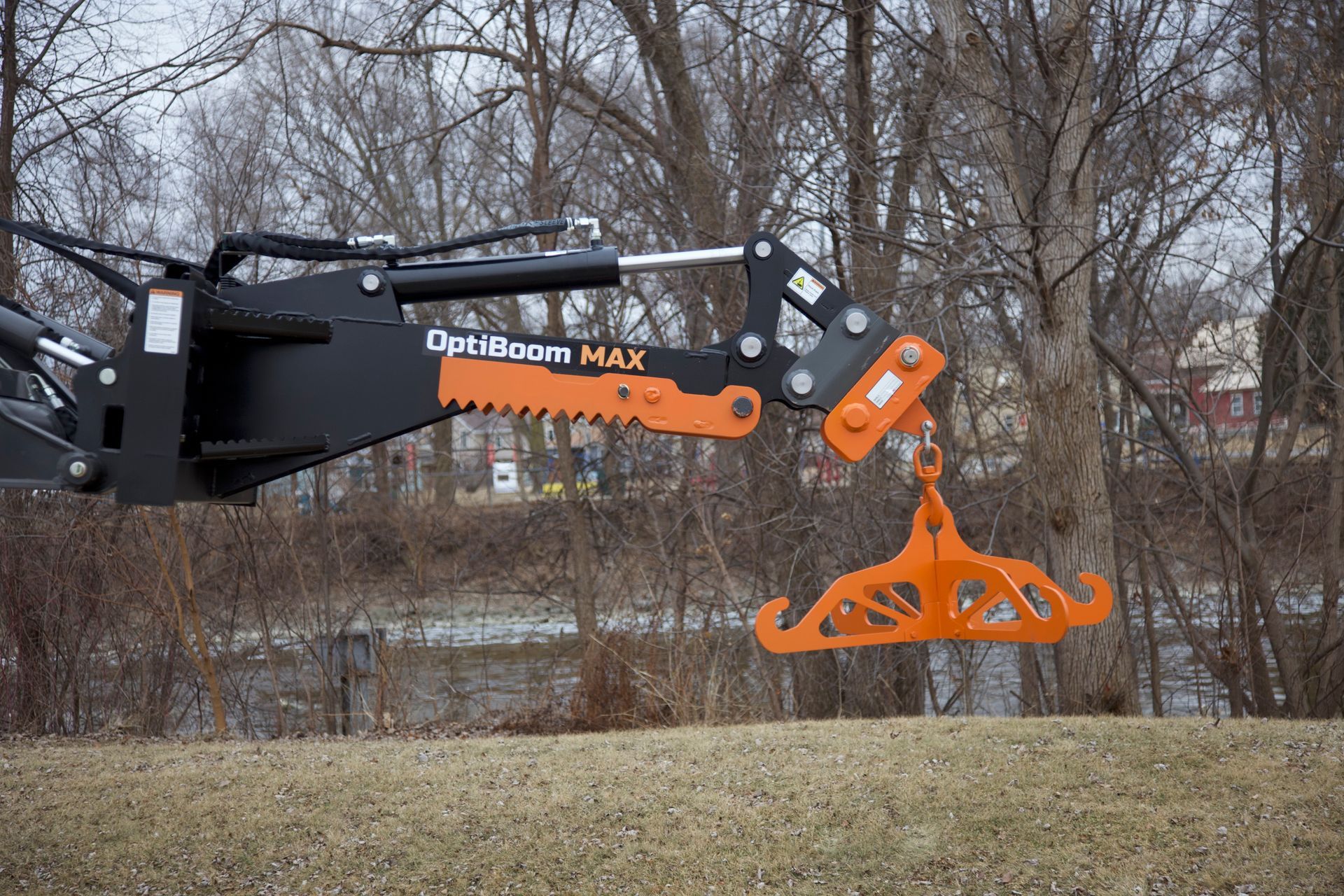

LFH4PT 4 Point LiftKey
A true powerhouse for lifting heavy and awkward loads with precision and control. Designed to work seamlessly with the single lift clevis, the 4-point lift offers a pivoting mechanism that allows for versatile and dynamic attachment, making it perfect for handling super sacks, nets, and other multipoint lifting jobs. Whether you’re moving heavy bags, materials, or over sized items, this lift ensures you can doit all safely with maximum control and efficiency.
*Requires the Single Lift Clevice
Dynamic Pivoting: Allows for more flexible attachment and lifting of various heavy loads with precise control.
Heavy-Duty Construction: Built from ⅜” GR50 steel plate material, designed for strength and durability.
High Lifting Capacity: 4000 lbs. (2 tons) lifting capacity for handling heavy and awkward loads with ease.
Quick Attachment: Easily attach, detach, or swap the 4-point lift with the quick-attach system—takes under three minutes with just one pin.
Ideal for Multipoint Lifting: Perfect for bags, nets, and super sacks—providing enhanced load distribution and safety.
| Specification | Details |
|---|---|
| Overall Length | 41" |
| Overall Height | 14-1/4" |
| Overall Width | 41" |
| Total Weight | 41 lbs. (Approx.) |
| Reach on Boom | 72" from machine mounting plate |

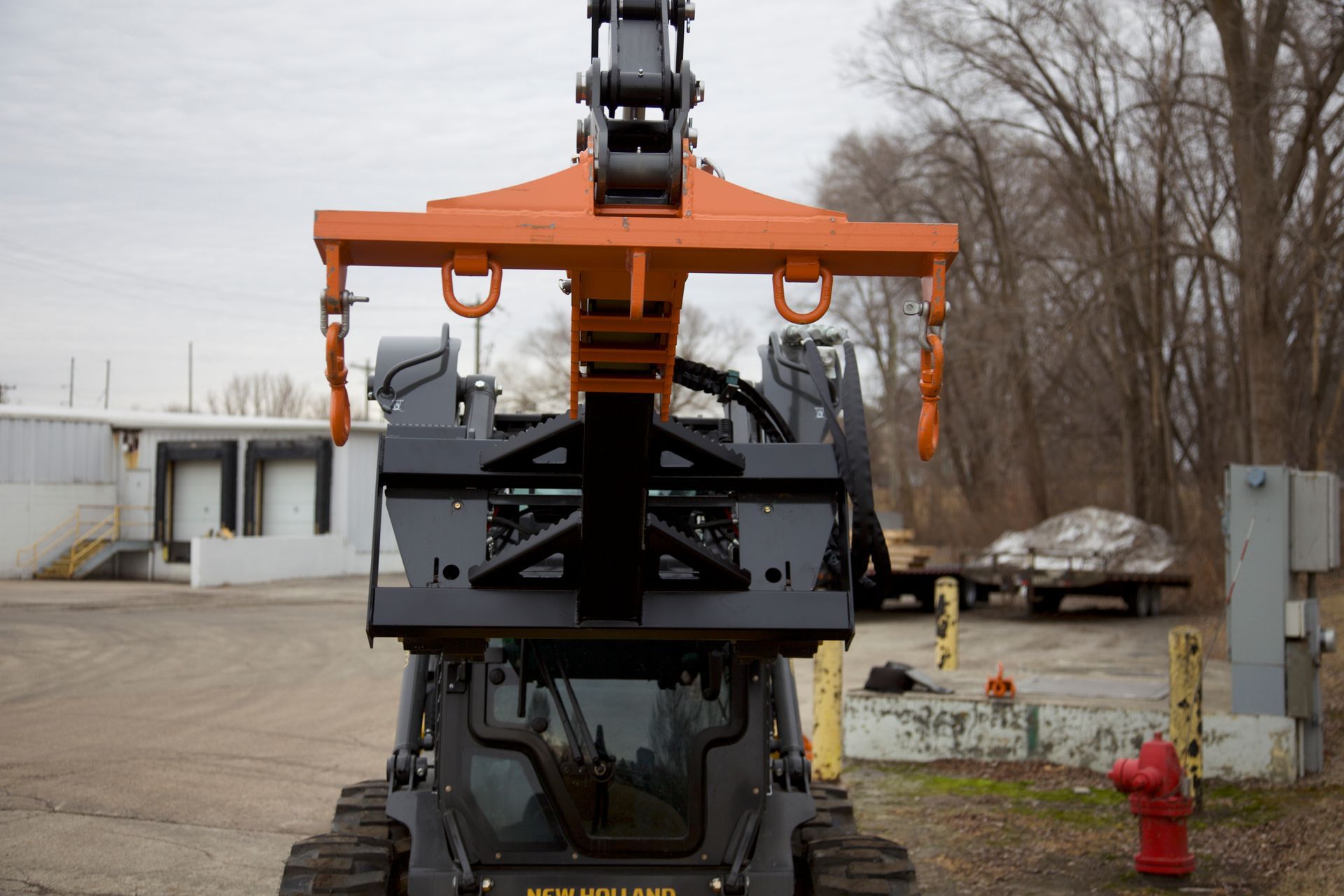

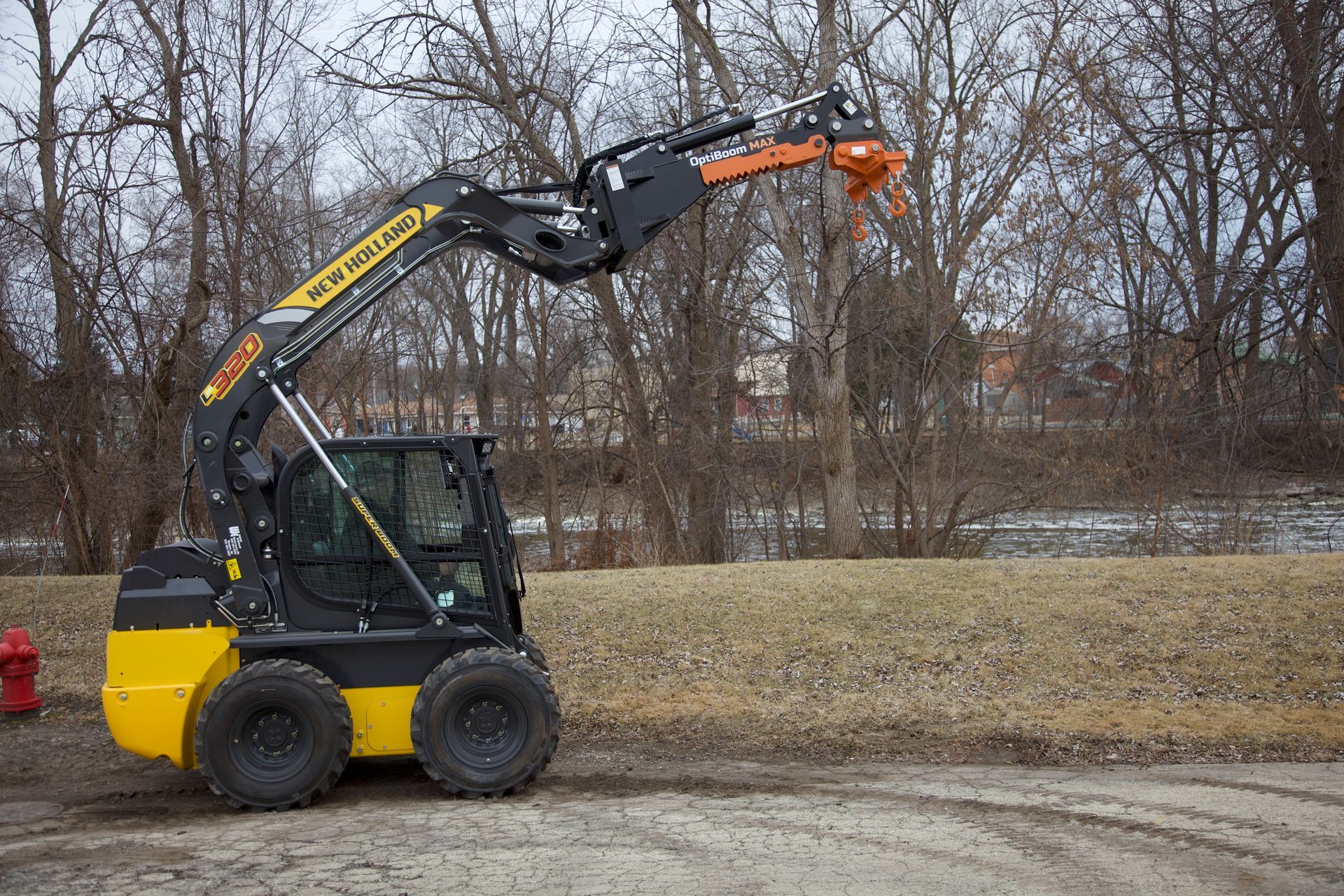

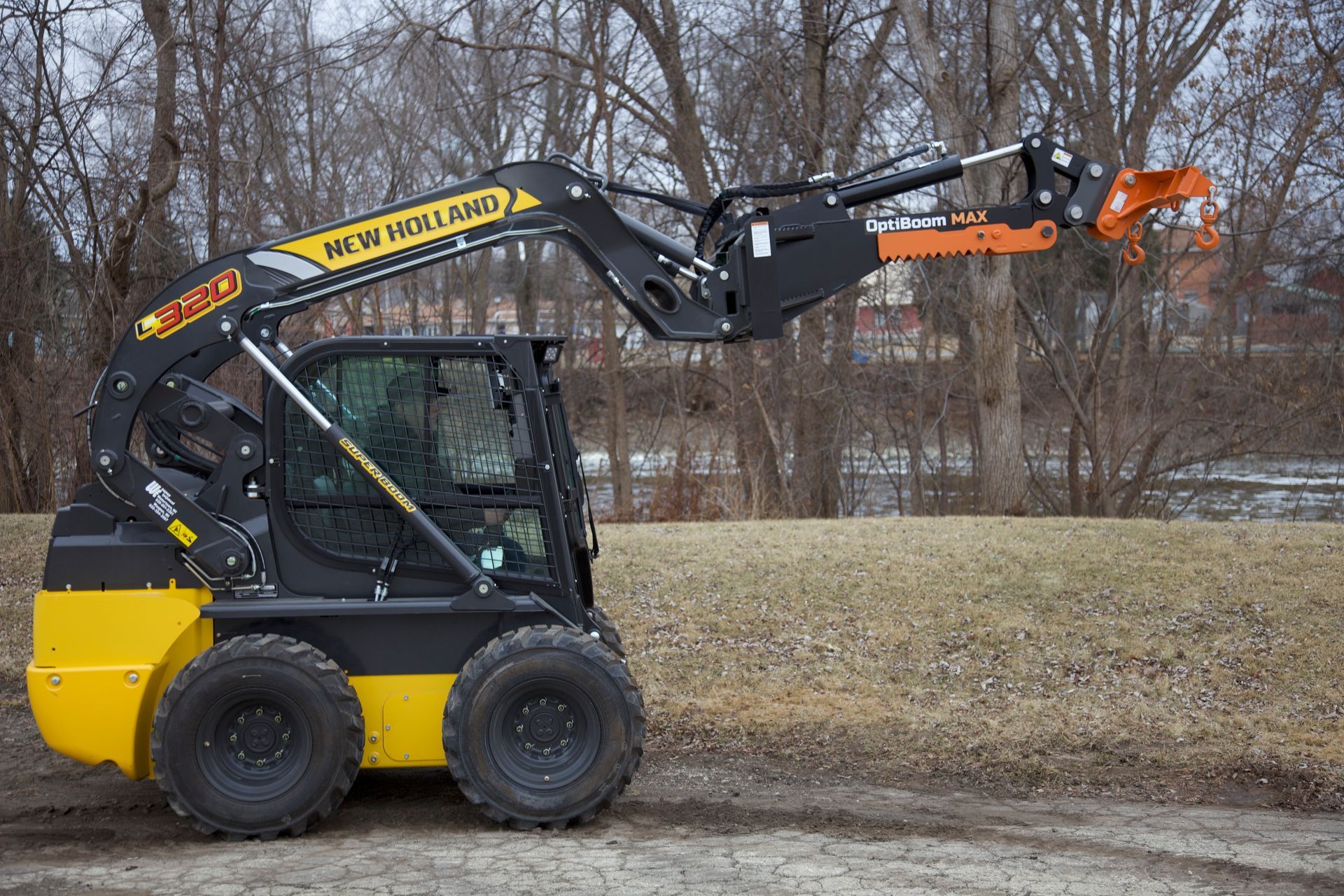

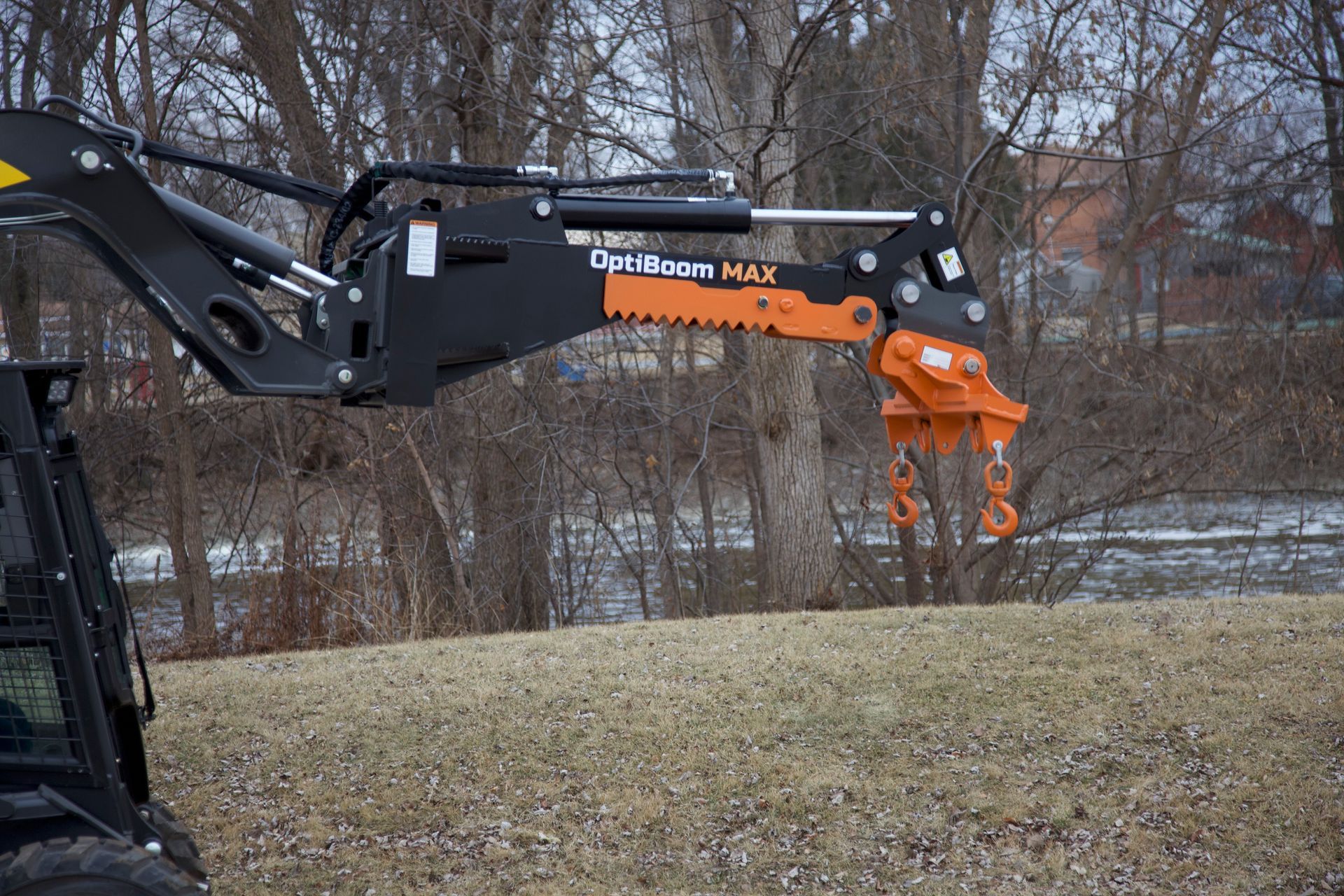

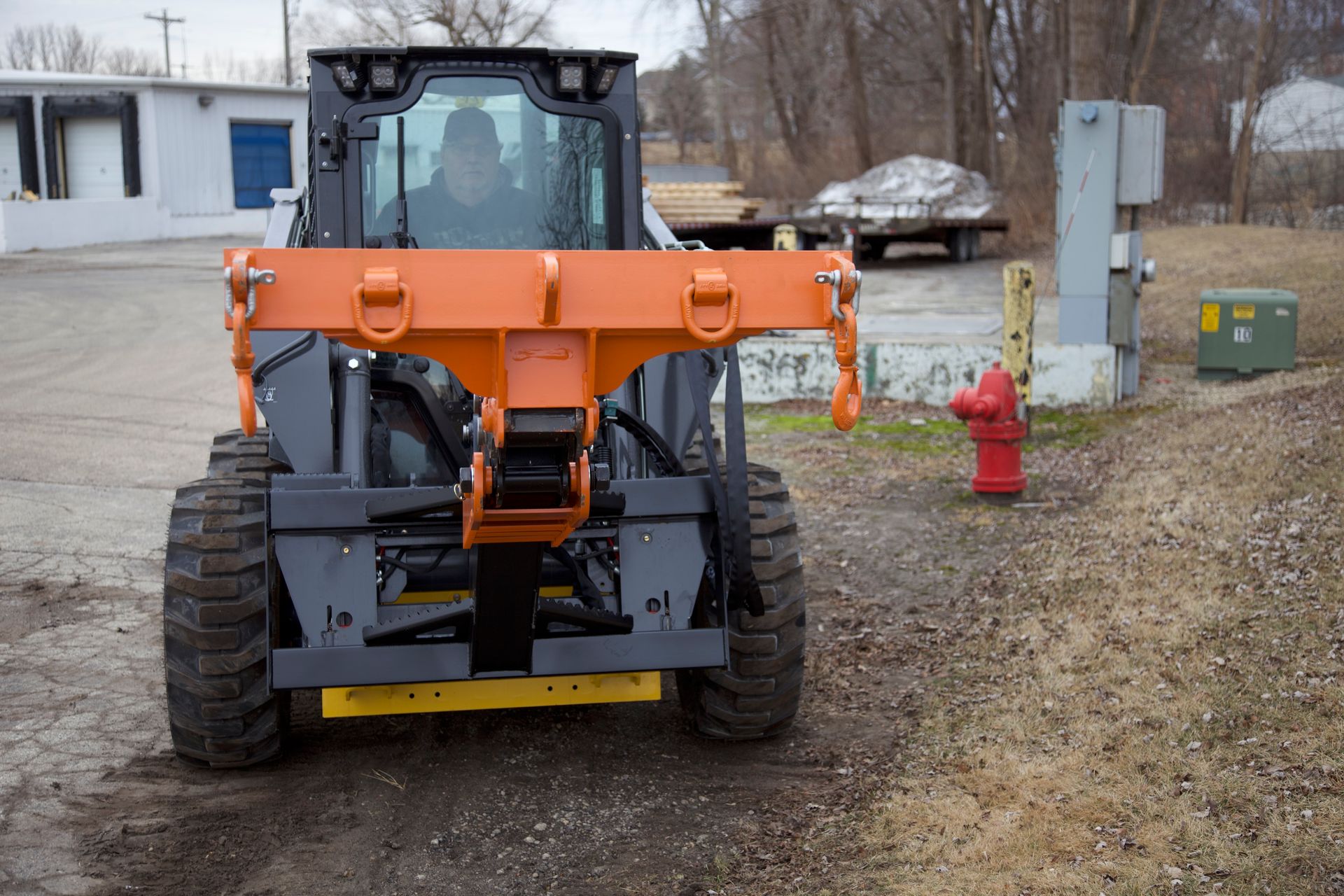

LFHSB-40 Spreader Bar
The ultimate solution for controlled and safe lifting of wide loads, pipes, planks, posts, and more. Offering three unique lifting options, this attachment is perfect for handling a variety of materials, whether they're pre-hooked, strapped, or secured by chains. When paired with the OptiBoom MAX, the Spreader Bar Lift increases efficiency and flexibility on the job site by providing a4000 lbs (2 tons) lifting capacity. With features designed for both precision and strength, this attachment ensures safety, reliability, and maximum versatility.
Three Lifting Options: Choose from center welded pad eye, dual inner lifting D-rings, or dual outer hooks to lift various materials.
Lifting Capacity: 4000 lbs. (2 tons), perfect for heavy-duty lifting.
Heavy-Duty Construction: Built from 3/8" GR50 steel and reinforced C-channel for superior strength.
Double Gusseted Hangers: Increased rigidity at lifting points for more secure load handling.
Versatile Mounting: ¾” thick pad eyes allow for flexible lifting configurations.
Quick Attachment: Easily attach or detach the Spreader Bar Lift in under three minutes with a single pin.
| Specification | Details |
|---|---|
| Overall Length | 12.5" |
| Overall Height | 20-1/4" |
| Overall Width | 40" |
| Total Weight | 85 lbs. |
| Reach on Boom | 72" from machine mounting plate to hooks |

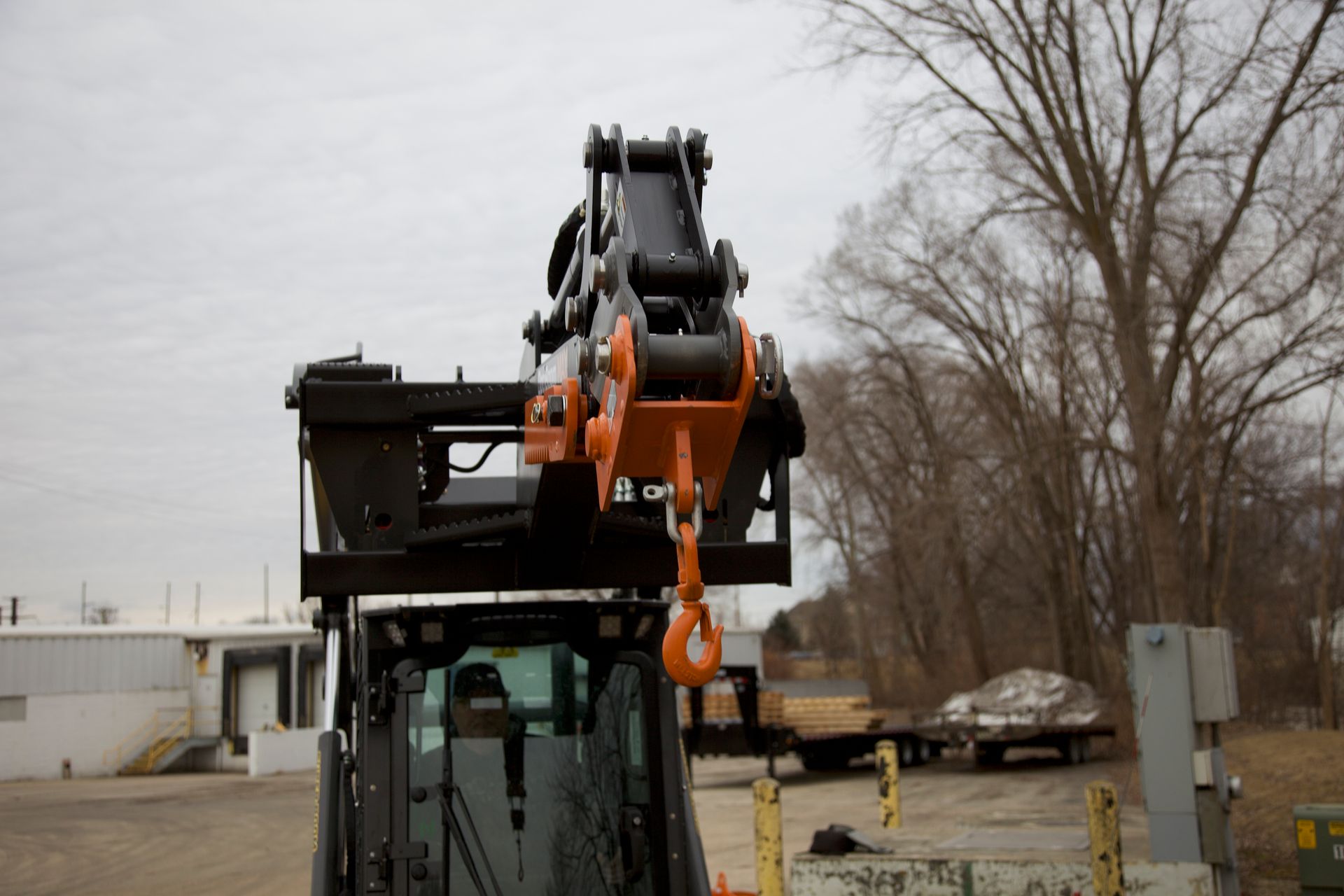

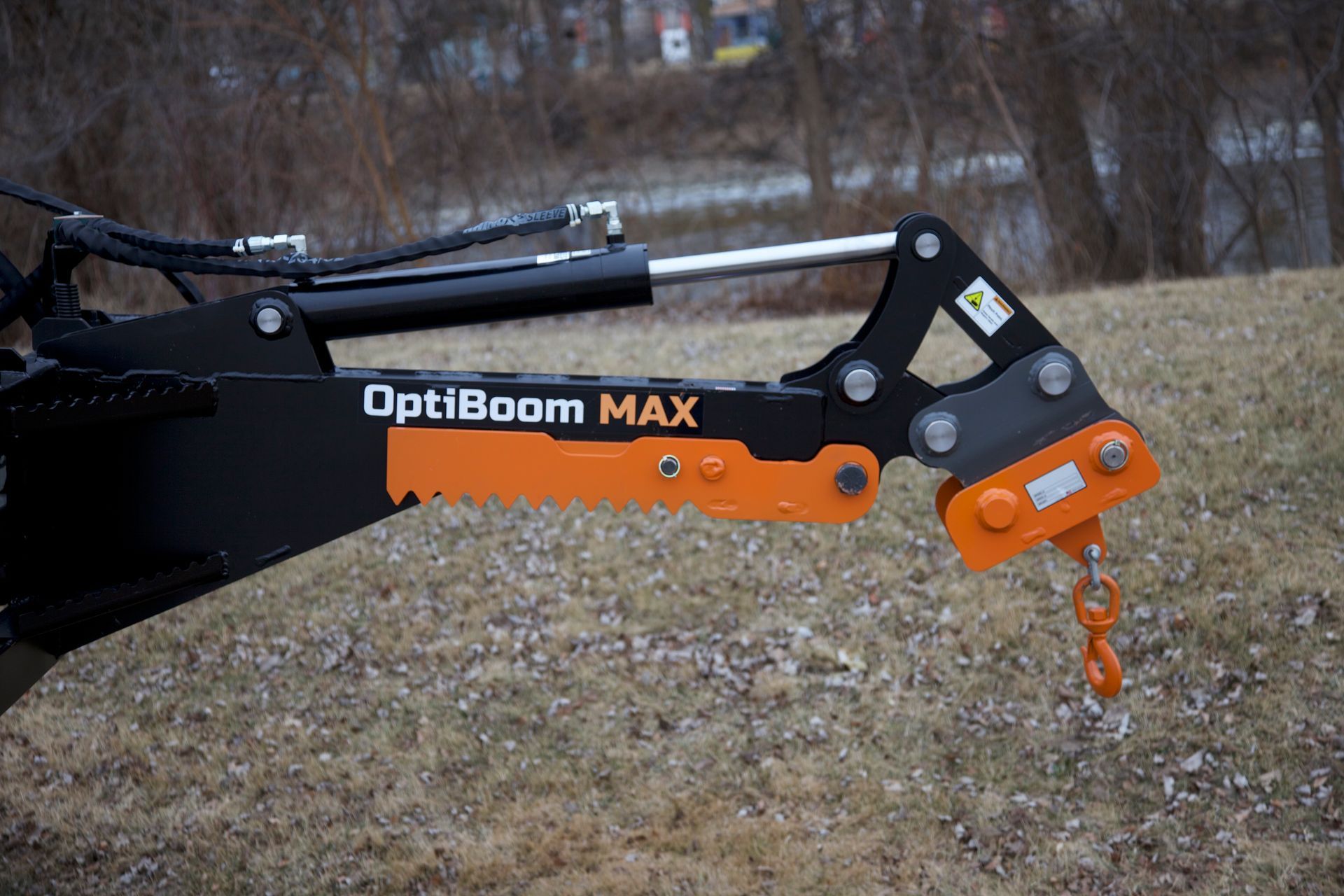

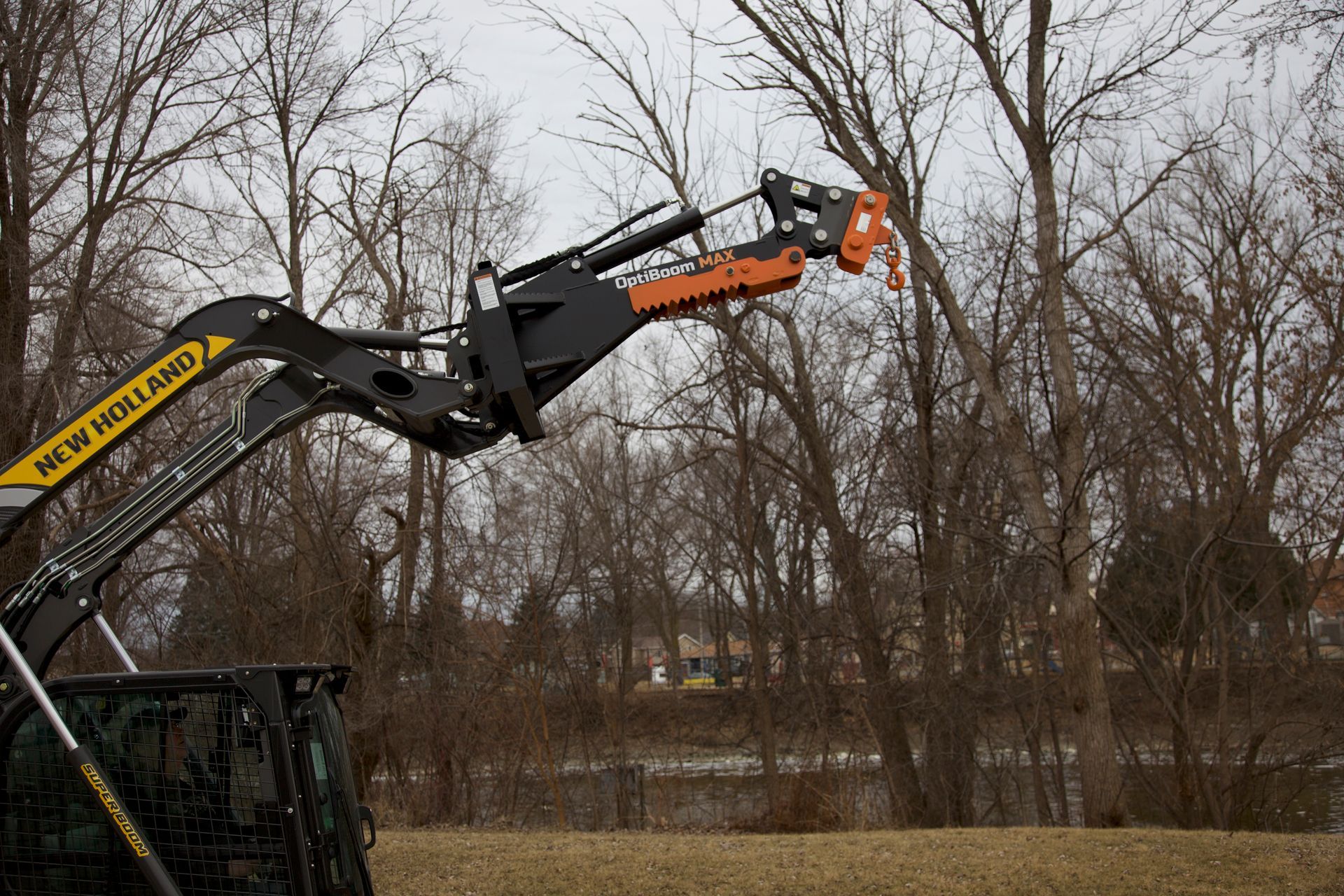

LFHSC Single Clevis
The perfect attachment for precise, controlled lifting of heavy loads. Designed for operators who need to maximize control and stability when handling up to 4000 lbs(2 tons), the Single Clevis Lift provides unmatched performance in lifting a variety of materials with ease. Whether you're lifting bags, nets, or multipoint lifting applications, the Single Clevis Lift offers a short, rigid design for precise load handling and maximum efficiency.
Lifting Capacity: 4000 lbs (2 tons), ideal for lifting heavy objects.
Compact & Rigid: Designed for precise control, ensuring stable and safe lifts.
Durable Construction: 3/8” GR50 steel plates, hardened steel bushings, and a ¾” thick pad eye provide increased wear resistance and reliability.
Versatile Hook: 2-ton WLL hook with clasp & shackle included for versatile lifting applications.
Double Gusseted Hangers: For increased rigidity at critical load-bearing points.
Quick Attach: Attach and detach easily with a single pin, taking under three minutes.
| Specification | Details |
|---|---|
| Overall Length | 16" |
| Overall Height | 10" |
| Overall Width | 7-1/4" |
| Total Weight | 30 lbs. |
| Reach on Boom | 72" from machine mounting plate to hook |

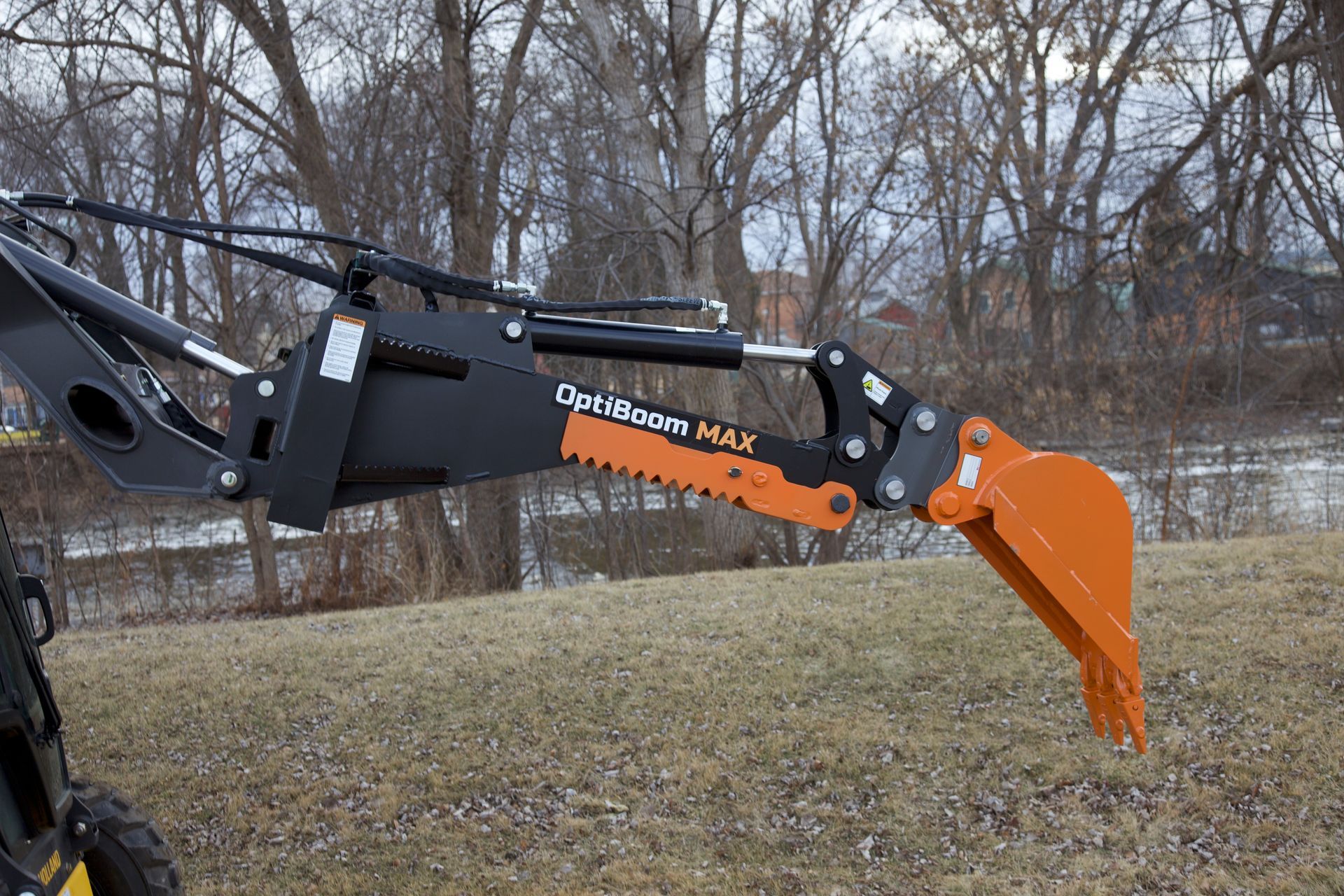

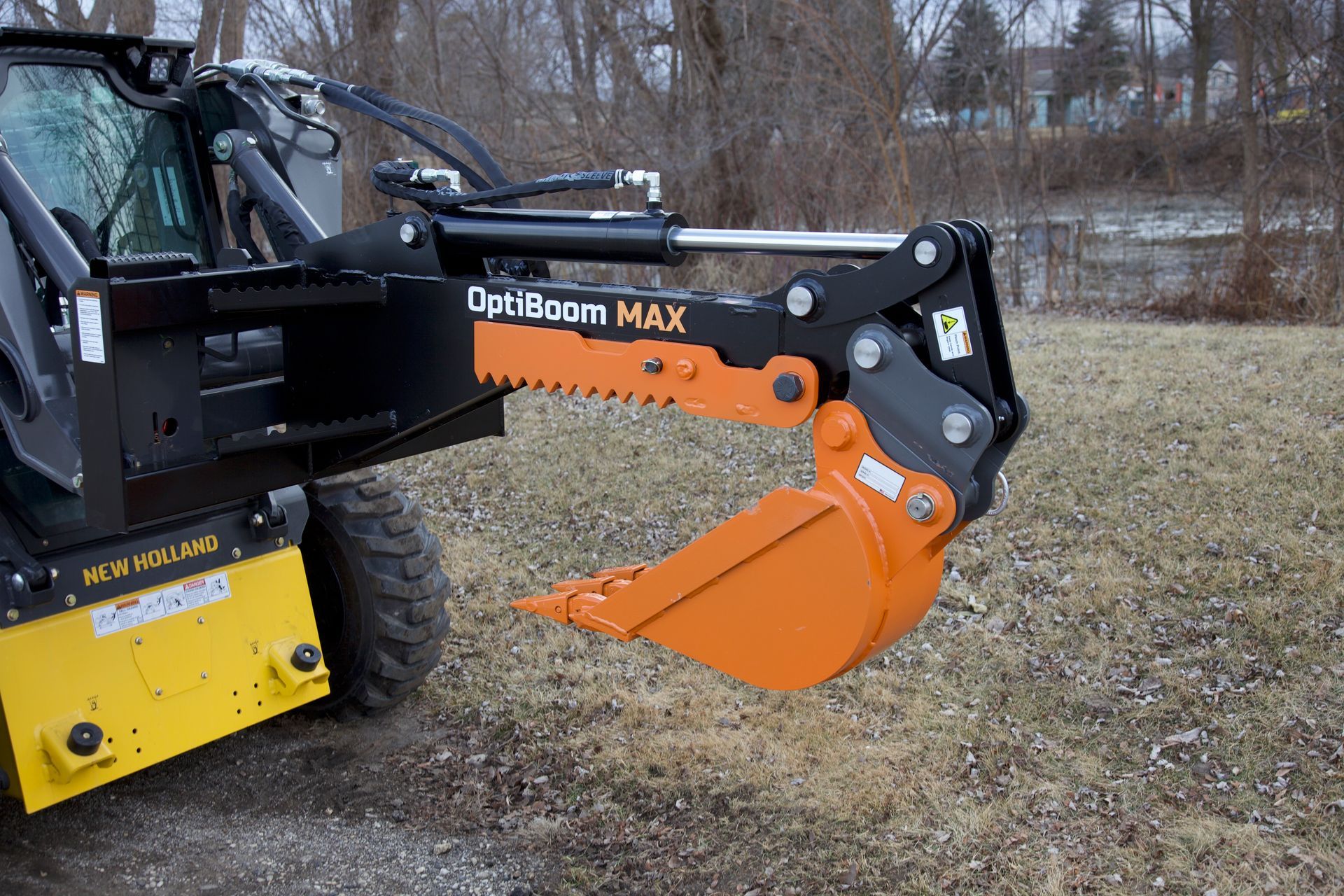

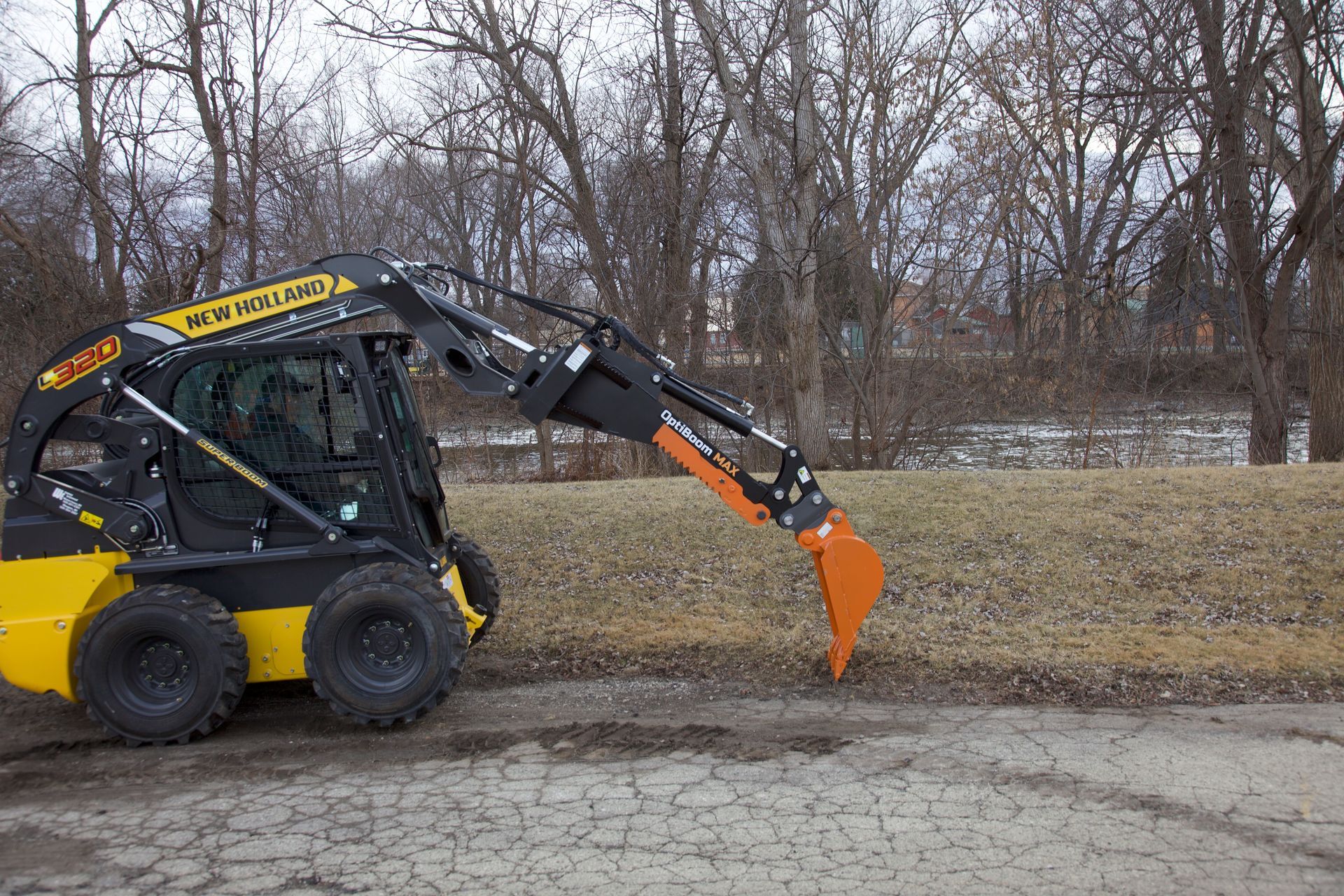

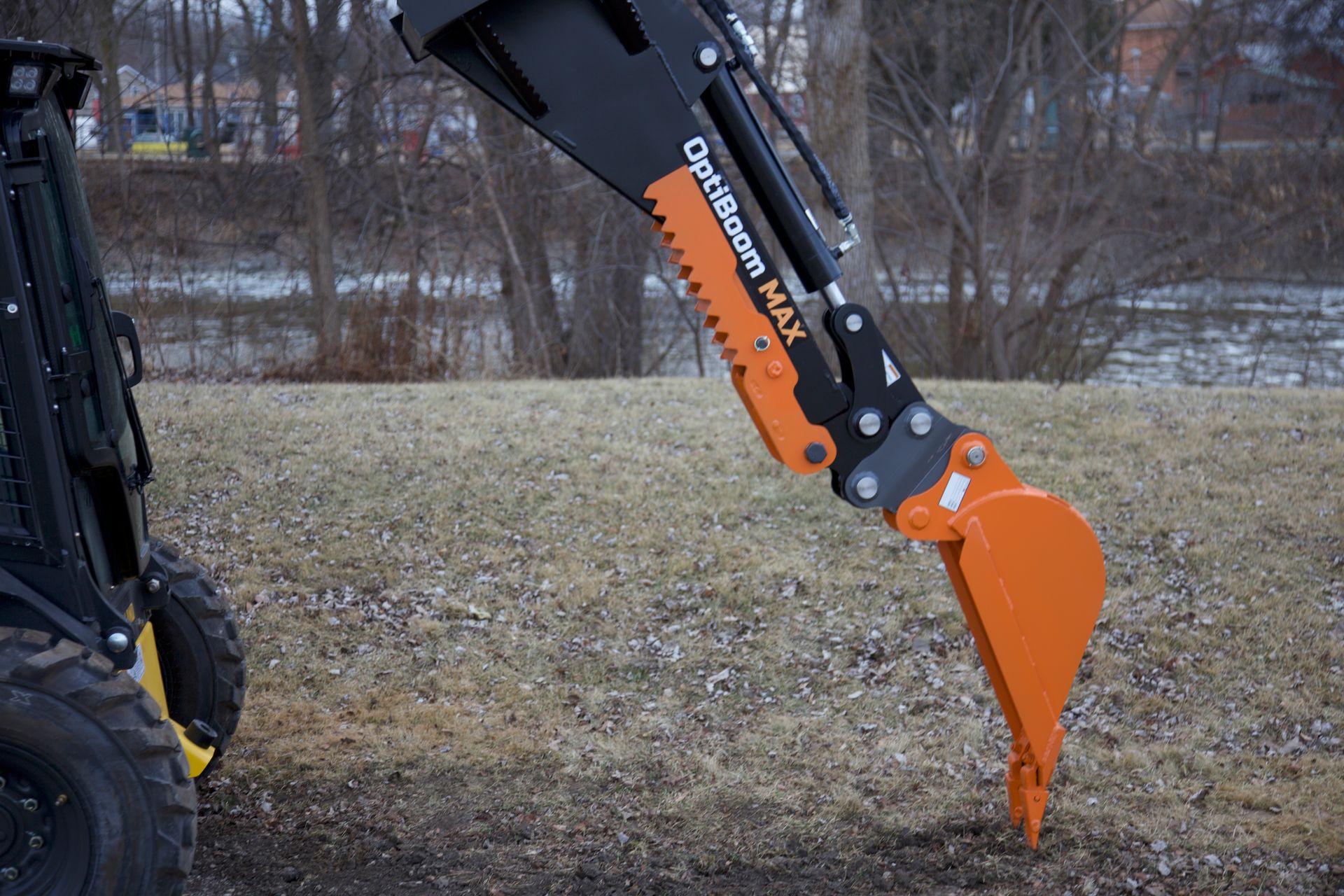

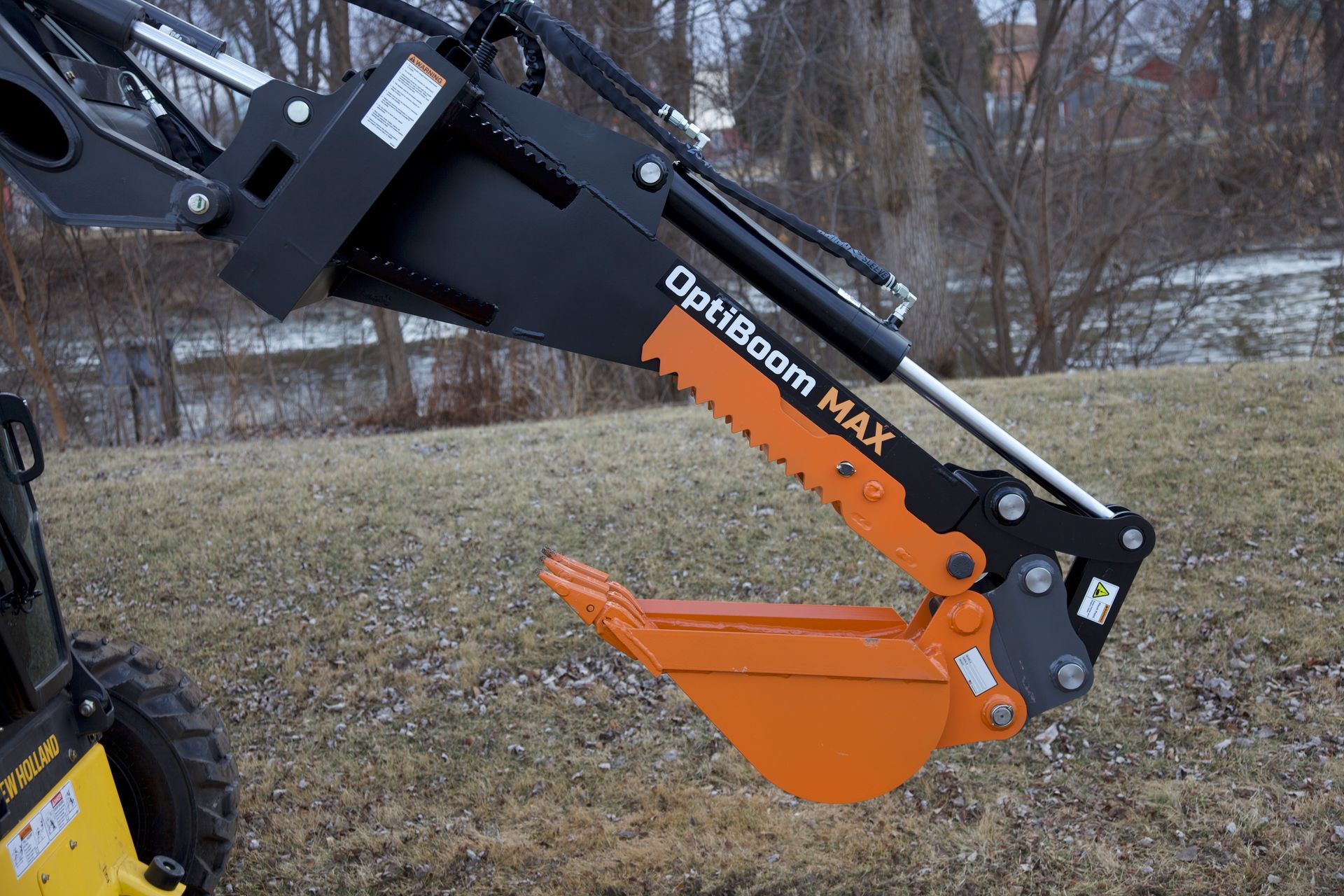

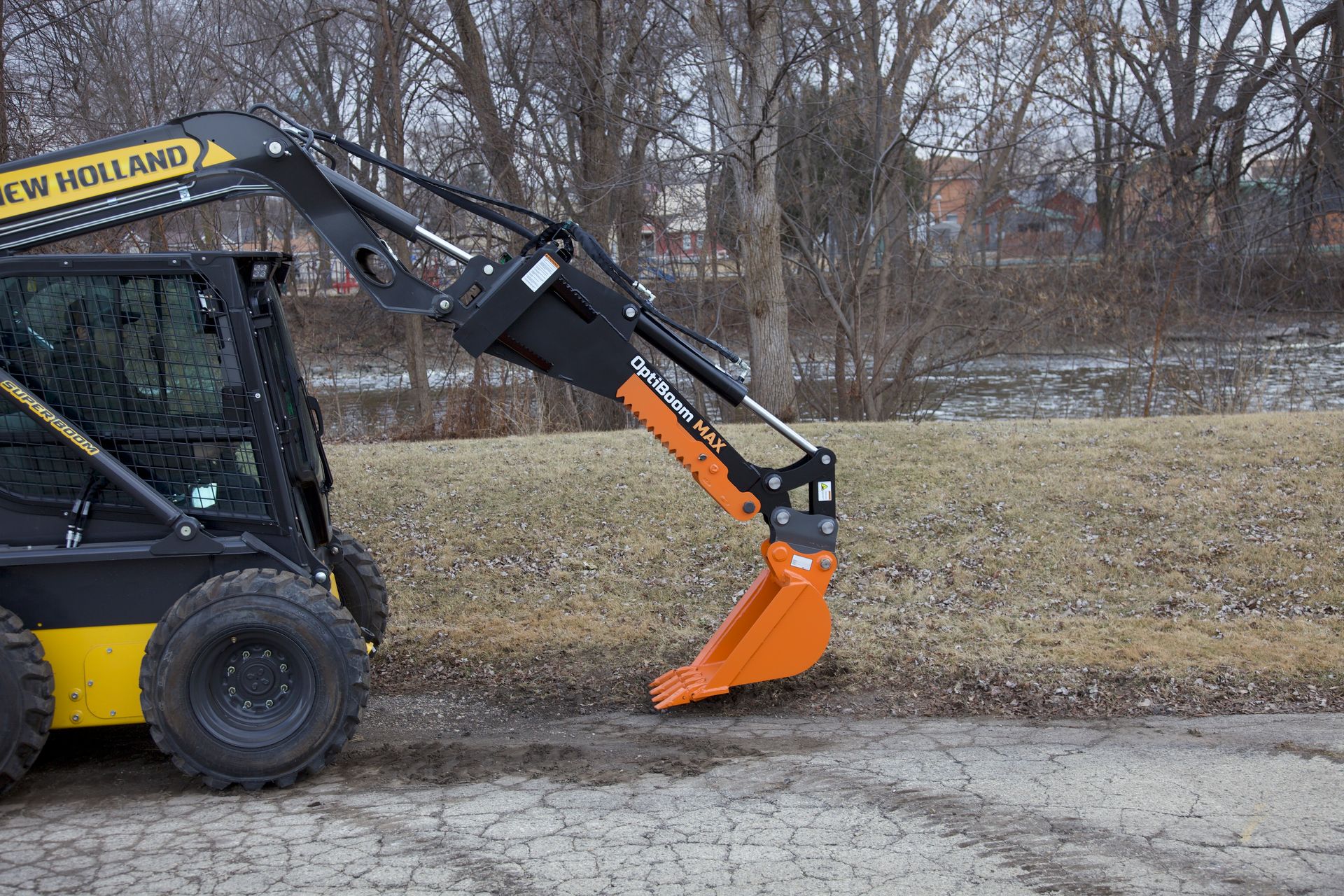

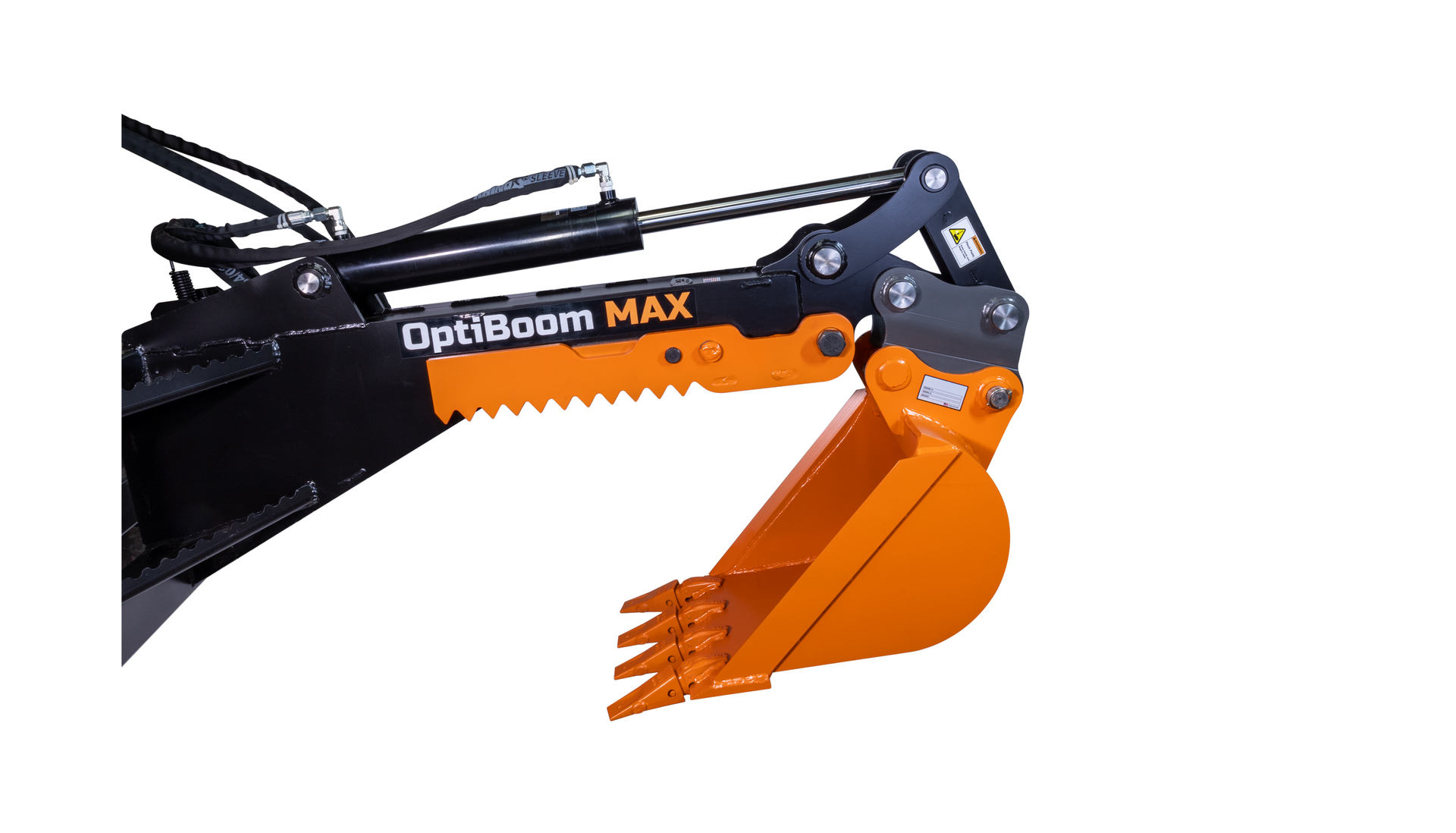

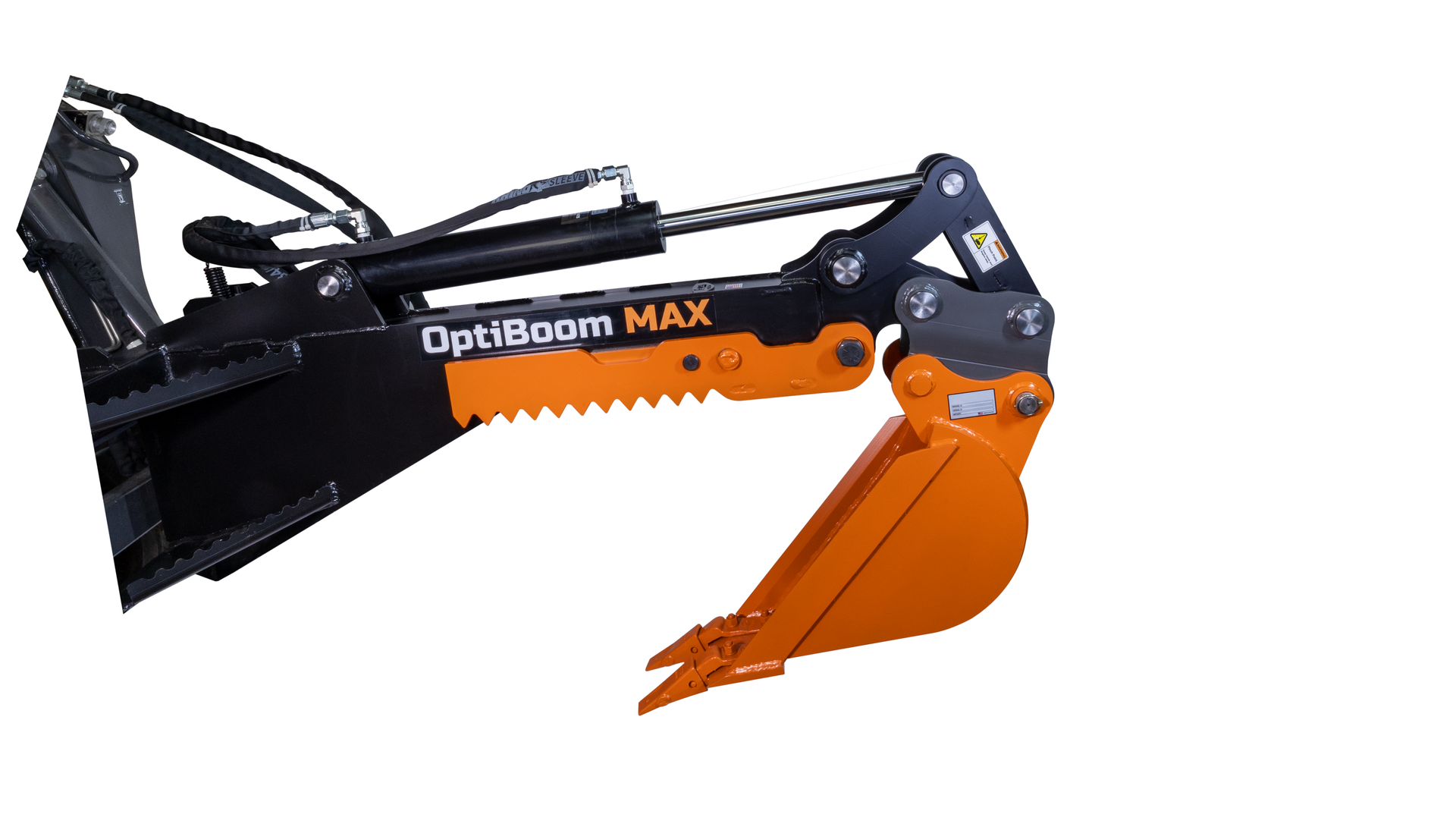

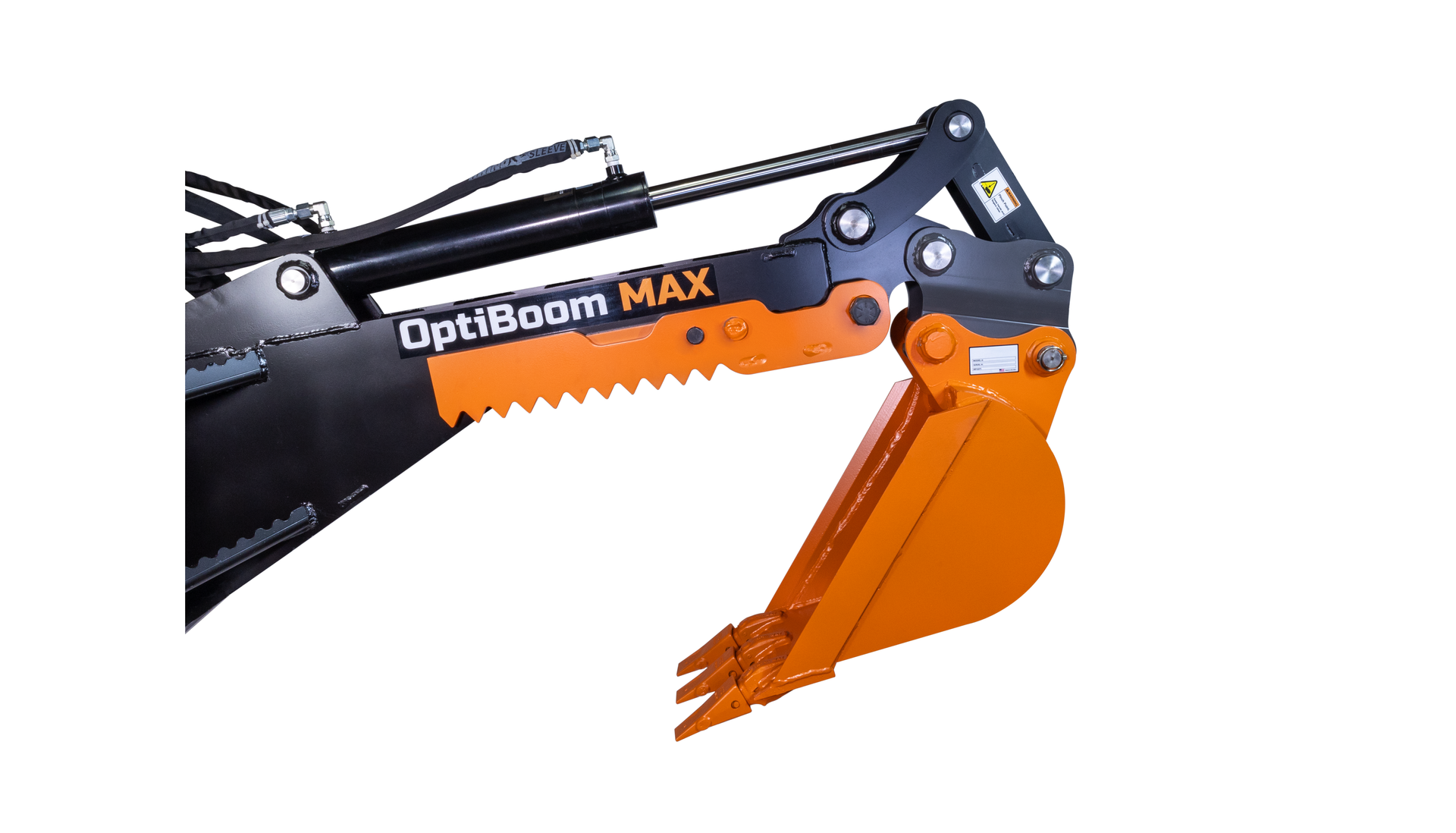

LFHB-9 Trenching Bucket
The 9” Trenching Bucket is a game-changing attachment that turns your skidsteer into a mini excavator. Ideal for tight spaces, precise digging, and quick trenching jobs, this durable bucket is the perfect addition to your equipment lineup. Whether you're digging for utilities, laying foundations, or performing small-scale excavation tasks, this attachment offers superior strength, versatility, and efficiency—all without the need to rent an excavator.
Weld-on/Bolt-on Teeth: Flexible attachment options for your convenience, replaceable J200 teeth (industry standard for excavators), shank tips welded or bolted directly onto bucket
Hardened Steel Bushings: Increasing wear resistance at high-stress points.
Durability: ¼” GR50 steel plates for superior strength and wear resistance.
Heavy Duty Cutting Edge:
- ¾” x 6” (WOT) or ¾” x 8” (BOT) bottom cutting edges for precise digging.
- Integrated ½” x 3” side cutting edges for clean, precise trenching.
Center Rib Reinforcement: Increases rigidity and prevents buckling during tough jobs.
Quick Attach: Easily swap attachments in under three minutes with one person pulling a single pin.
| Specification | Details |
|---|---|
| Overall Length | 35" |
| Overall Height | 23-1/4" |
| Overall Width | 9-5/8" |
| Total Weight | 145 lbs. Approx. |
| Reach on Boom | 96" from tip of teeth extended to mounting plate |
| Digging Depth | Up to 84” (7’) [213 cm] |
LFHB-12 Trenching Bucket
Transform your skid steer into a powerful mini excavator with the 12” Trenching Bucket. Designed for precision and durability, this attachment is perfect for digging trenches, laying utilities, or digging foundations without the hassle or expense of renting a mini excavator.
Engineered for maximum strength and wear resistance, this bucket ensures you get efficient, precise, and reliable performance on every task.
Weld-on/Bolt-on Teeth: Choose the teeth that fit your needs—weld-on or bolt-on for easy replacements. Heavy-duty J200 teeth(industry standard for excavators) shank tips welded or bolted directly onto bucket.
Hardened Steel Bushings: For enhanced wear resistance and long-lasting performance.
Heavy Duty Construction: ¼” GR50 steel plates provide strength and durability for tough tasks.
Cutting Edge Options:
- Choose between ¾” x 6” (WOT) or ¾” x 8” (BOT) for tough bottom cutting.
- ½” x 3” integrated side cutting edges for clean, precise trenching.
Reinforced Structure: A center rib reinforces all rolled parts, ensuring the bucket remains rigid during demanding jobs.
Quick Attach: Swap attachments in under three minutes with just one person pulling a single pin.
| Specification | Details |
|---|---|
| Overall Length | 35" |
| Overall Height | 23-1/4" |
| Overall Width | 12-5/8" |
| Total Weight | 165 lbs. Approx. |
| Reach on Boom | 96" from tip of teeth extended to mounting plate |
| Digging Depth | Up to 84” (7’) [213 cm] |
LFHB-18 Trenching Bucket
The 18” Trenching Bucket is the perfect attachment for tackling large-scale trenching projects. Designed to handle the toughest soil conditions and provide precise, clean cuts, this attachment transforms your skid steer into a powerhouse that rivals a mini excavator. Whether you’re digging trenches for utilities, foundations, or larger construction projects, this bucket will increase efficiency and precision.
Heavy Duty Construction: Constructed with ¼” GR50 steel plates, providing superior durability and wear resistance.
Hardened Steel Bushings: Increase wear resistance at stress points, ensuring longer lifespan and less maintenance.
Replaceable J200 Teeth: Heavy-duty J200 teeth (industry standard for excavators) shank tips welded or bolted directly onto bucket, ensuring optimal digging performance and durability.
Cutting Edges:
- Choose between ¾” x 6” (WOT) or ¾” x 8” (BOT) heavy-duty cutting edges for maximum strength.
- Integrated ½” x 3” side cutting edges for carving clean, precise holes and improving trenching performance.
Reinforced Structure: Center rib reinforcement enhances bucket rigidity and strength during heavy use.
Quick Attach: Fast attachment changes in under three minutes, with just one person pulling and inserting a single pin.
| Specification | Details |
|---|---|
| Overall Length | 35" |
| Overall Height | 23-1/4" |
| Overall Width | 18-5/8" |
| Total Weight | 196 lbs. Approx. |
| Reach on Boom | 96" from tip of teeth extended to mounting plate |
| Digging Depth | Up to 84” (7’) [213 cm] |

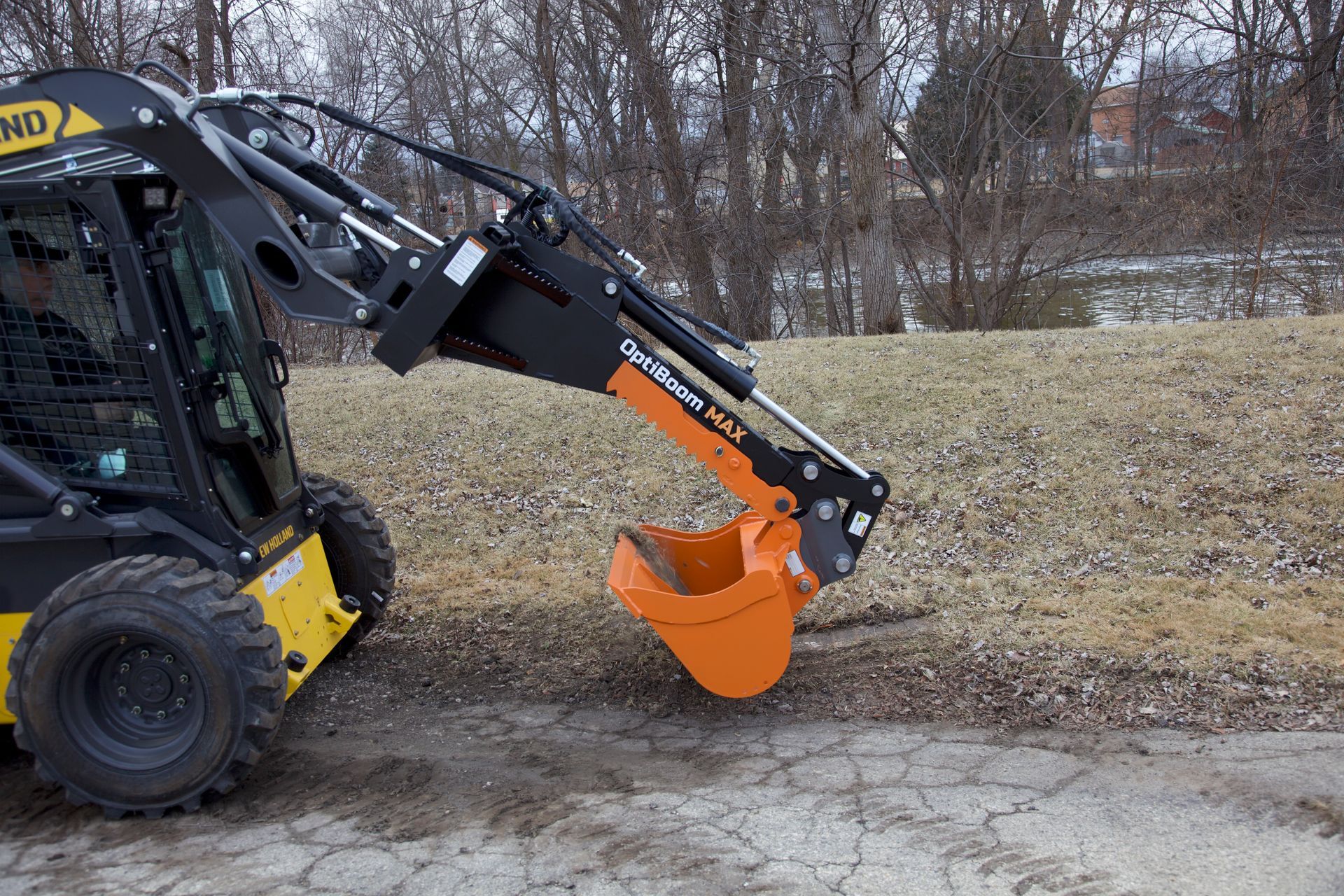

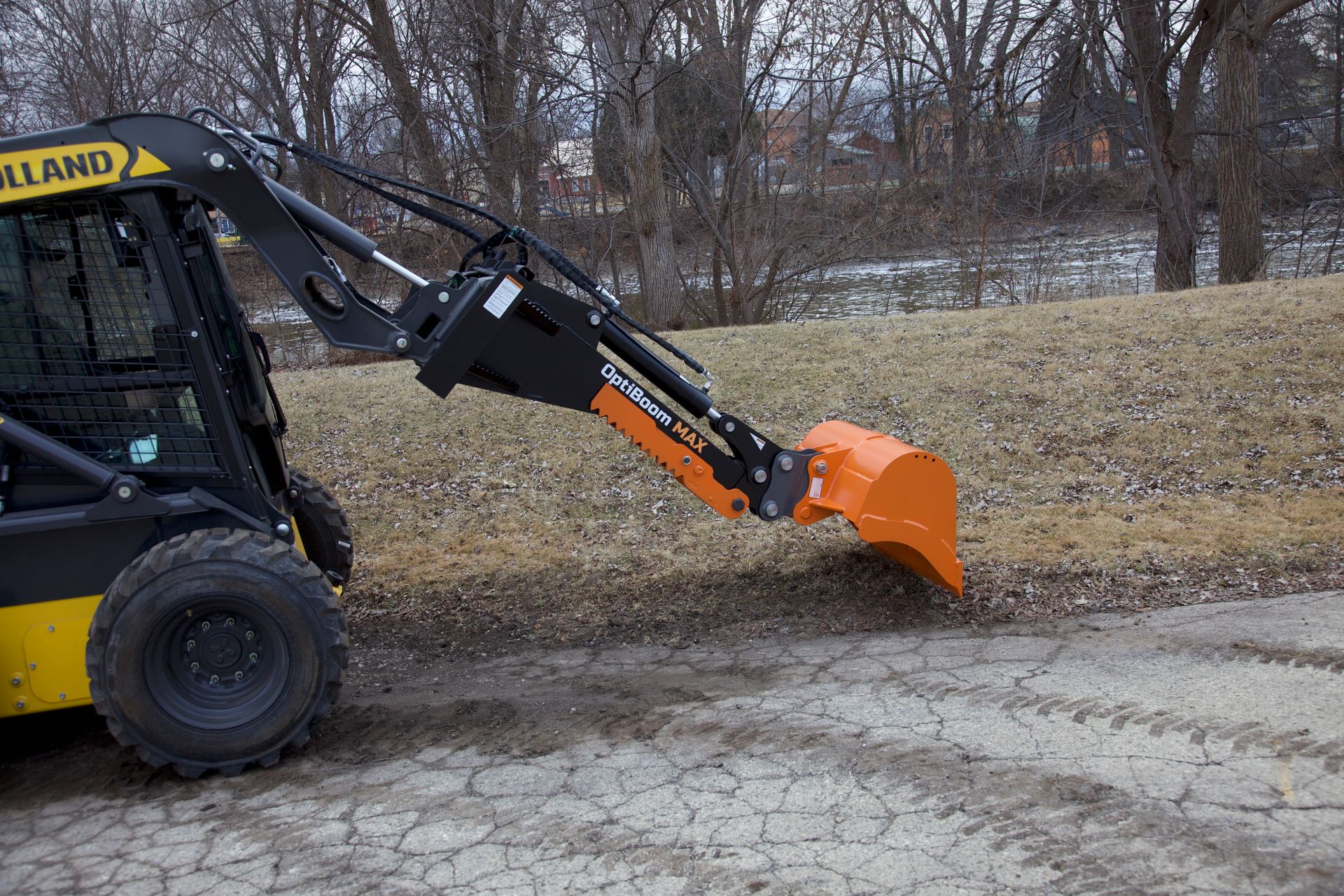

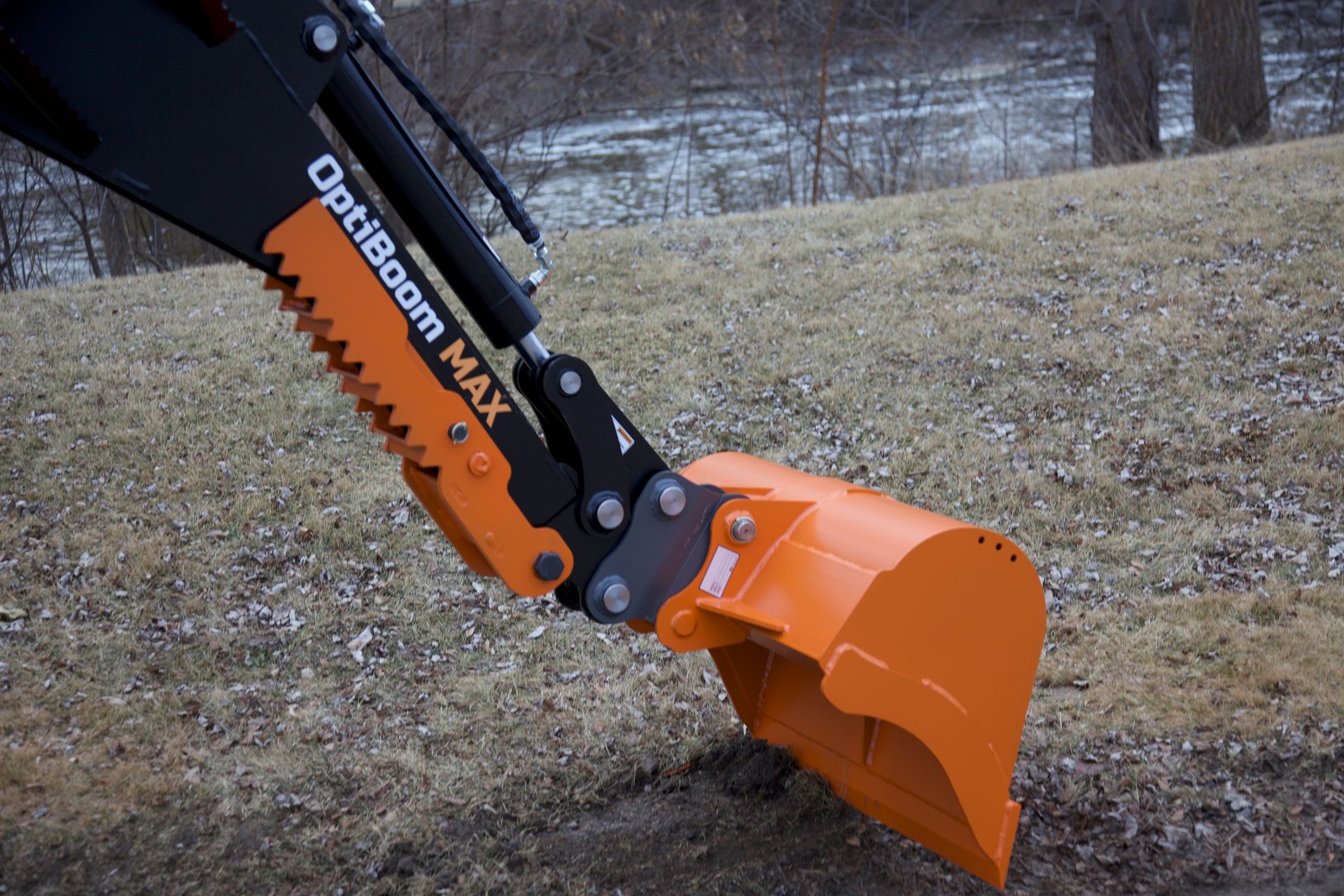

LFHDB-36 & 42 Ditching Bucket
Transform your skid steer into a versatile earth-moving machine with the 36” and 42"Ditching Bucket. Designed for maximum durability and efficiency, this bucket is ideal for tasks like grading, ditch clearing, and general earth-moving. Its reinforced construction ensures rigidity and longevity, making it the perfect choice for large-scale jobs.
Heavy-Duty Steel Construction: Built from 3/16” GR50 steel for superior wear resistance and strength.
Box Frame Design: Welded box under top hangers increases lateral rigidity to prevent twisting and warping.
Reinforced Hangers: Top hanger gussets and outside center reinforcement provide added strength at critical attachment points.
- Side Reinforcement: 3/8” side reinforcement ensures the bucket maintains its structural integrity during tough tasks.
Drainage Features: Center rib drainage holes and end plate drainage holes help expel fluids and slurries, keeping the bucket efficient.
Heavy-Duty Cutting Edge: Equipped with a ¾” x 6 bottom cutting edge for long-term performance.
Quick Attach: Easy to swap with just one person inserting a single pin in under three minutes.
| Specification | Details 36" | Details 42" |
|---|---|---|
| Overall Length | 29-1/4” | 29-1/4” |
| Overall Height | 23" | 23" |
| Overall Width | 36-3/4” | 42-3/4” |
| Total Weight | 248 lbs. | 278 lbs. |
| Reach on Boom | 88.5" (224.8 cm) | 88.5" (224.8 cm) |

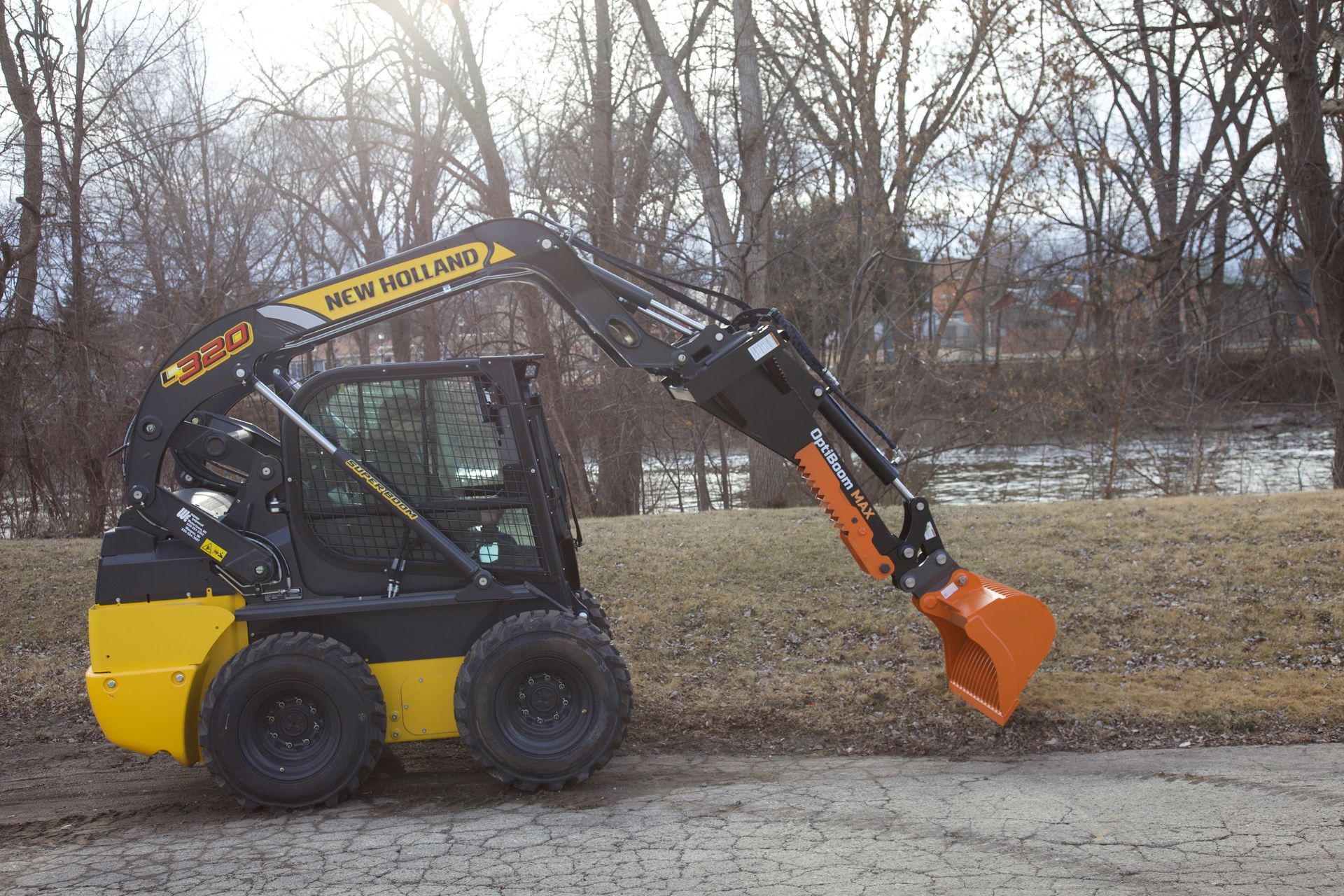

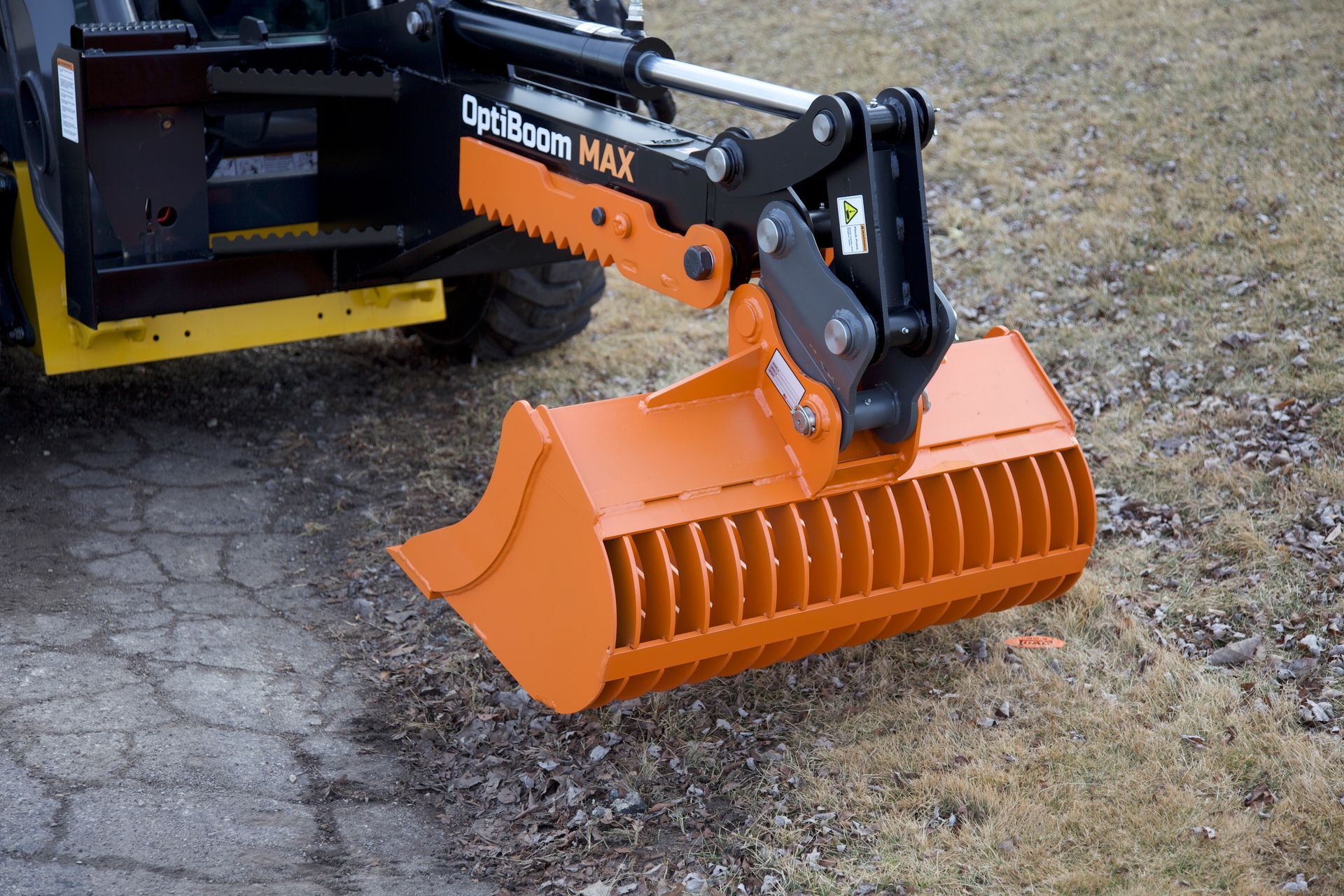

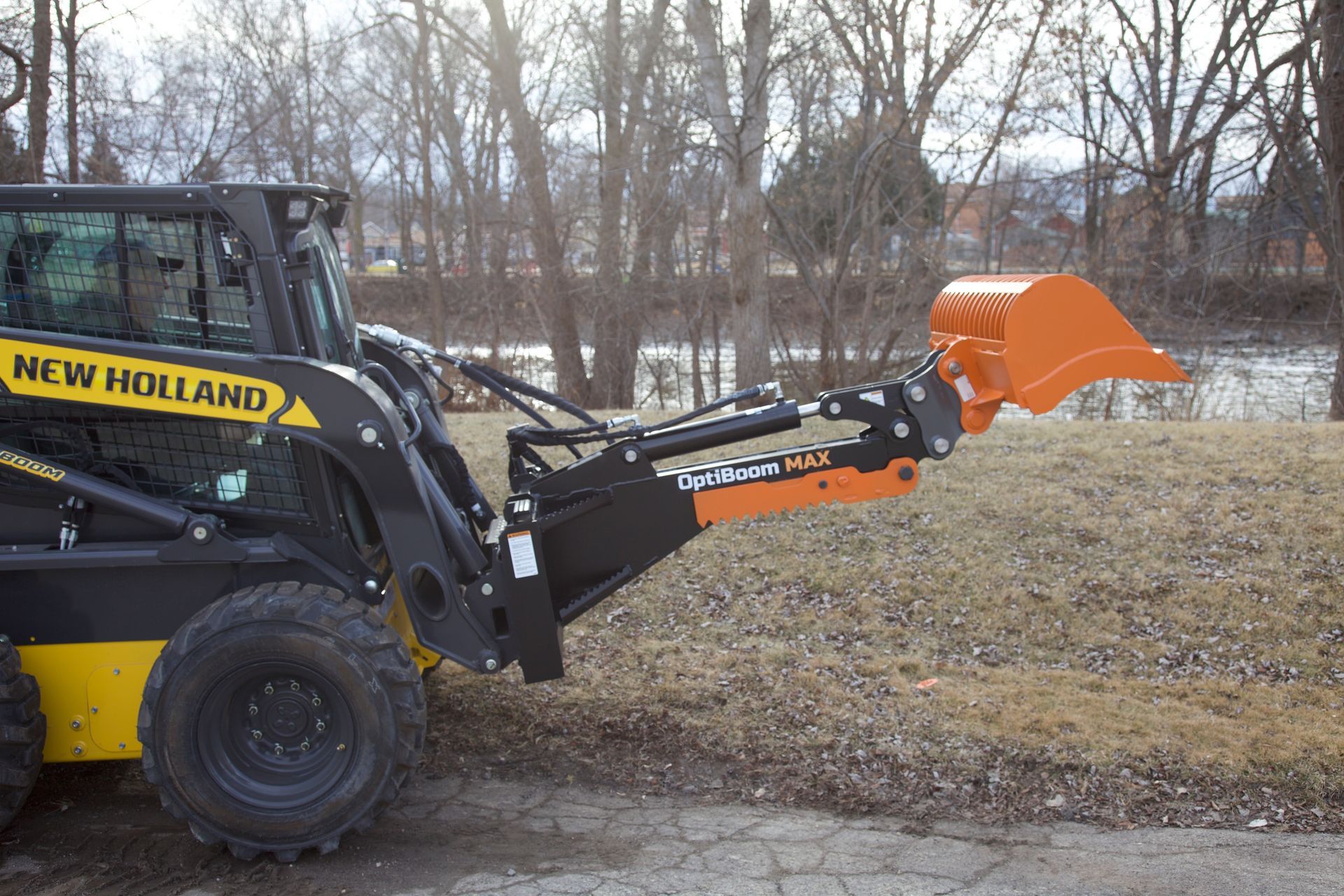

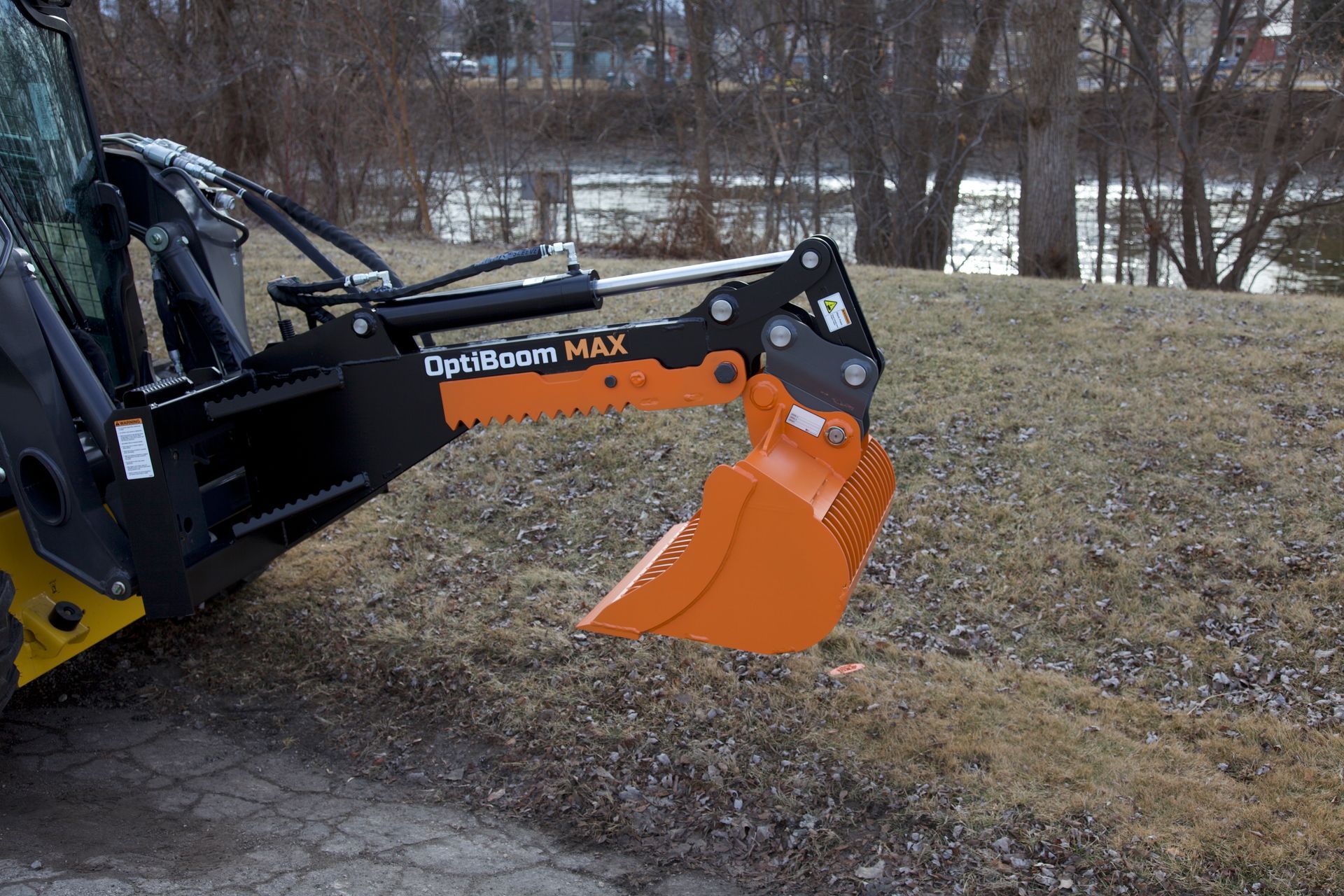

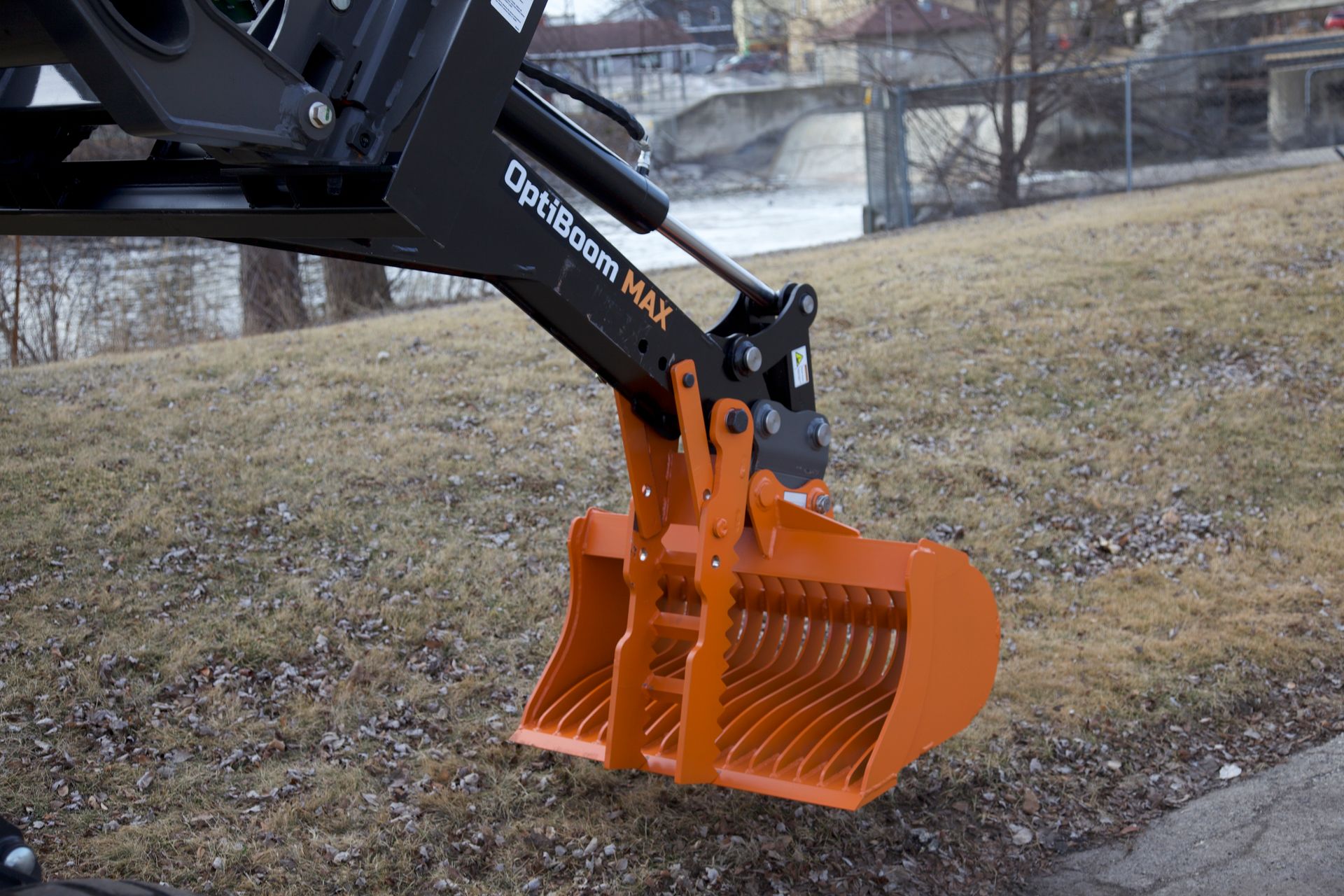

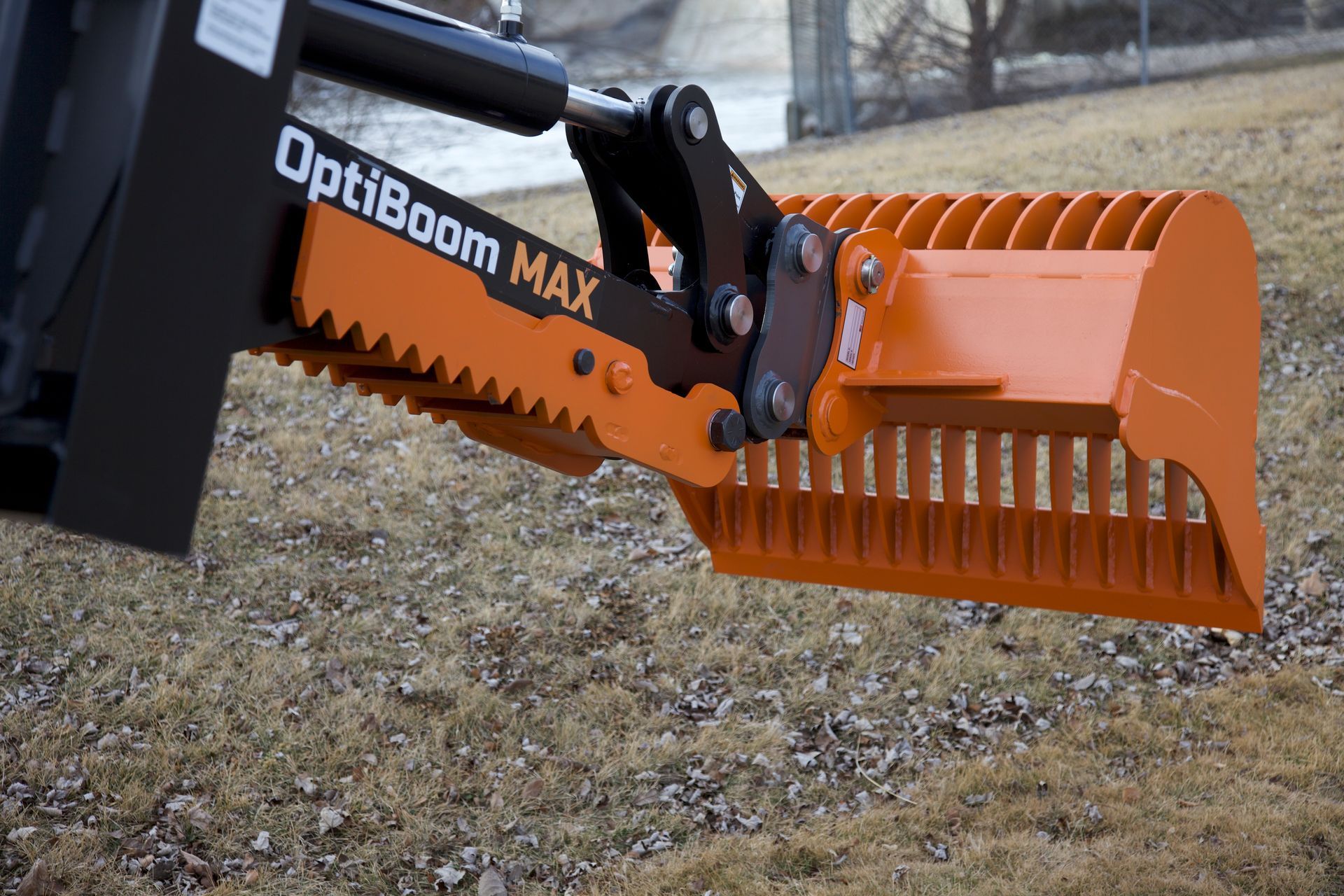

LFHSB-36 & 42 Skeleton Bucket
Transform your skid steer into a powerful material sifting and cleanup machine with the 36” and 42" Skeleton Bucket. Built for tough tasks, this bucket efficiently separates solid material from waste, saving time and reducing labor costs. Designed to maximize strength and capacity while preventing warping, it’s perfect for contractors who specialize in cleanup, material sorting, and heavy-duty earth-moving operations.
Heavy-Duty Construction: Side plates made of 3/16” GR50 steel for superior wear resistance, with 3/8” side reinforcement for added durability.
Reinforced Design: Welded box under top hangers increases lateral rigidity to prevent twisting and warping during heavy use.
Stiffness Enhancements: Top hanger gussets and center rib reinforcement bars provide additional strength at critical stress points.5/16” robust center ribs with a 2-1/2” web height prevent bucket flexing and provide more control during operation.
- Optimized for Sifting: 2” rib spacing allows for efficient sifting of solid materials, making it easier to separate useful material from waste.
Heavy-Duty Cutting Edge: ¾” x 6” bottom cutting edge for maximum durability and long-term performance.
Quick Attach: Attach and detach the bucket quickly with a single pin, taking under three minutes to complete.
| Specification | Details 36" | Details 42" |
|---|---|---|
| Overall Length | 29-1/4” | 29-1/4” |
| Overall Height | 23" | 23" |
| Overall Width | 36-3/4” | 42-3/4” |
| Total Weight | 300 lbs. | 325 lbs. |
| Reach on Boom | 88.5" (224.8 cm) | 88.5" (224.8 cm) |
